Home > Products > Electric spindle > Grinding spindle > Vertical grinding spindle > Vertical grinding spindle 190XDJ08G50/HC100
  • Vertical grinding spindle 190XDJ08G50/HC100:Rotation seed,8000RPM Power,52.5Kw Torque,100Nm Voltage,380V Frequency,400Hz Current,119A Lubrication Grease Cooling method Water
  • Vertical grinding spindle 190XDJ08G50/HC100:Rotation seed,8000RPM Power,52.5Kw Torque,100Nm Voltage,380V Frequency,400Hz Current,119A Lubrication Grease Cooling method Water
  • Vertical grinding spindle 190XDJ08G50/HC100:Rotation seed,8000RPM Power,52.5Kw Torque,100Nm Voltage,380V Frequency,400Hz Current,119A Lubrication Grease Cooling method Water
  • Vertical grinding spindle 190XDJ08G50/HC100:Rotation seed,8000RPM Power,52.5Kw Torque,100Nm Voltage,380V Frequency,400Hz Current,119A Lubrication Grease Cooling method Water

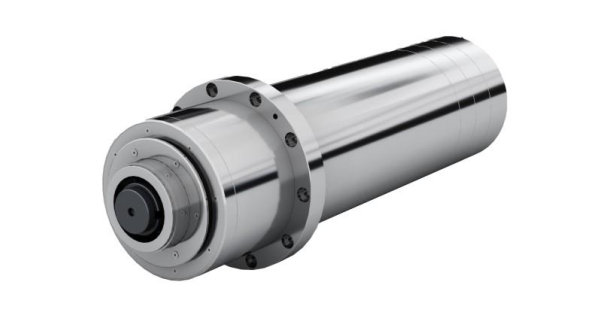

Vertical grinding spindle 190XDJ08G50/HC100:Rotation seed,8000RPM Power,52.5Kw Torque,100Nm Voltage,380V Frequency,400Hz Current,119A Lubrication Grease Cooling method Water

This type of spindle has a rotation speed of 8000RPM,Power of 52.5kW,Torque of 100Nm,can be used on Vertical grinding machine tools with good stability.
Rotation seed
8000RPM
Power
52.5Kw
Torque
100Nm
Voltage
380V
Frequency
400Hz
Current
119A
Lubrication
Grease
Cooling method
Water
GET A QUOTE
  • Vertical grinding spindle 190XDJ08G50/HC100:Rotation seed,8000RPM Power,52.5Kw Torque,100Nm Voltage,380V Frequency,400Hz Current,119A Lubrication Grease Cooling method Water
  • Vertical grinding spindle 190XDJ08G50/HC100:Rotation seed,8000RPM Power,52.5Kw Torque,100Nm Voltage,380V Frequency,400Hz Current,119A Lubrication Grease Cooling method Water

Description

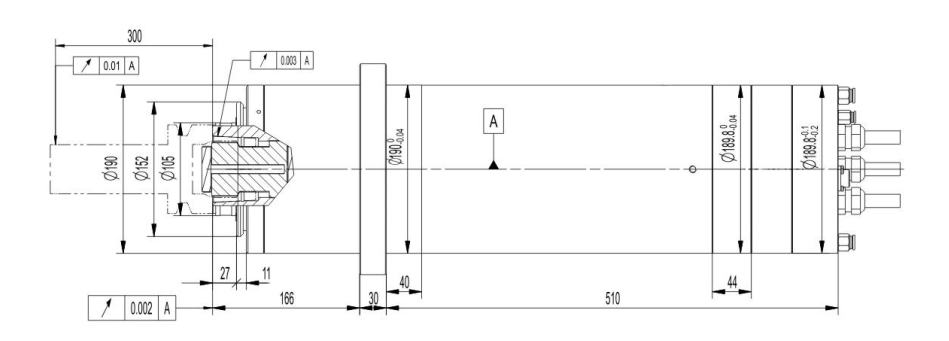

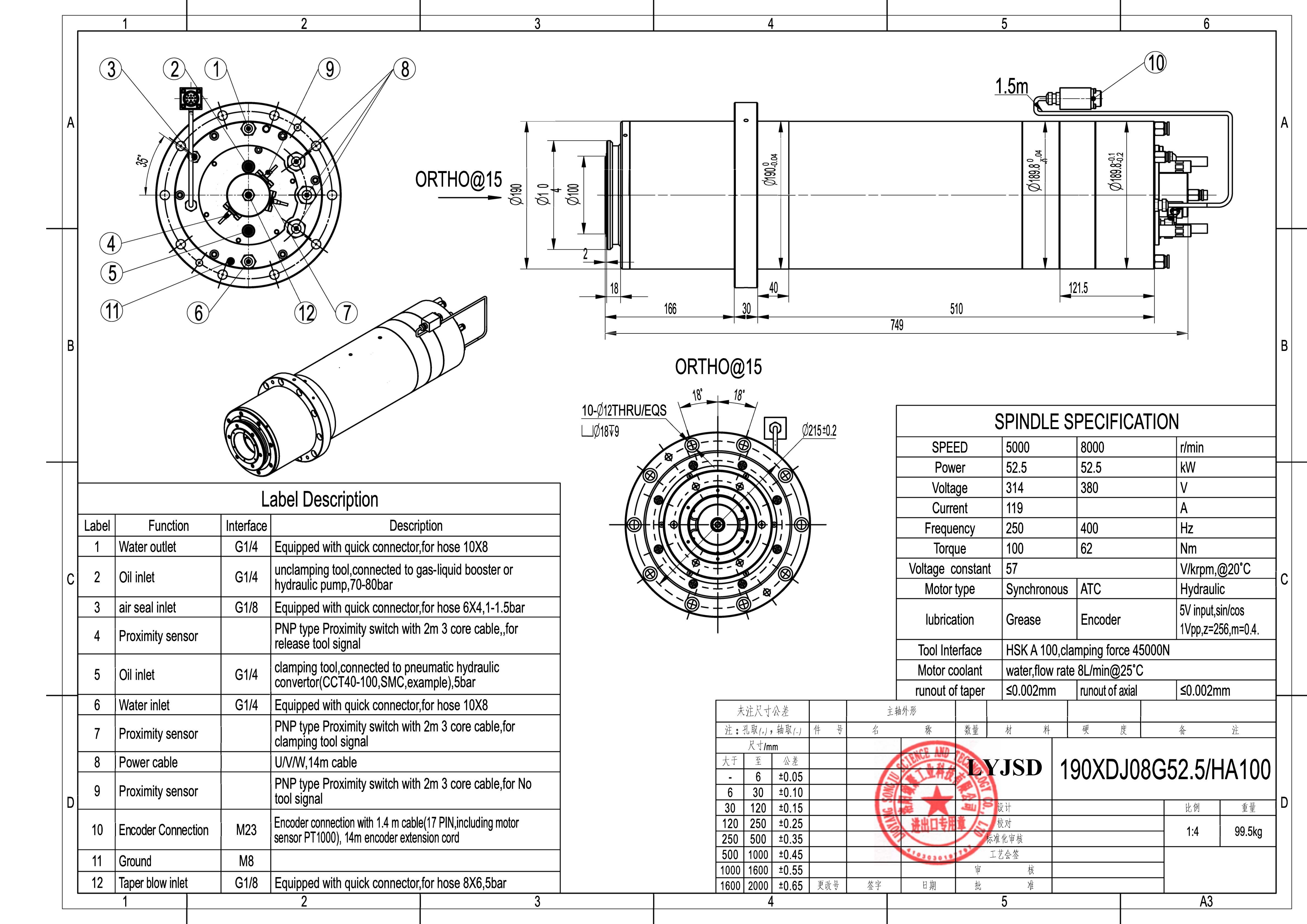

If you need more detailed parameters please find them as below:

Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
