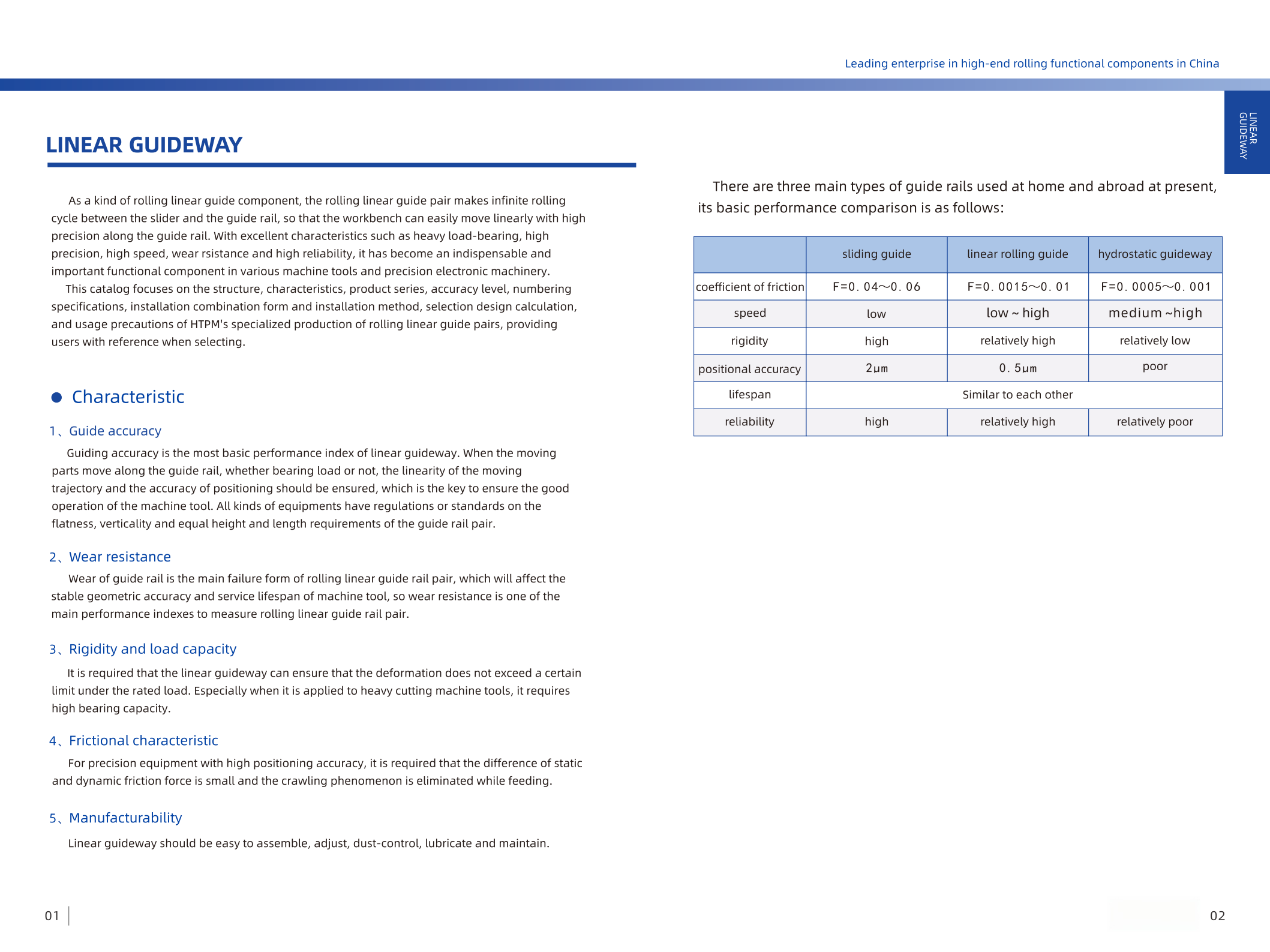

What is Linear Guideway?
A linear guideway (also known as a linear rail or linear motion guide) is a precision mechanical component that enables smooth, accurate straight-line movement. It typically consists of a stationary profiled rail and a moving bearing block (carriage) that glides along the rail using recirculating rolling elements, such as balls or rollers, to minimize friction.
Luoyangsongju is a professional linear guide way manufacturer, providing high-quality linear guideway for your project and applications. If you are looking for a linear guideway, feel free to contact us.

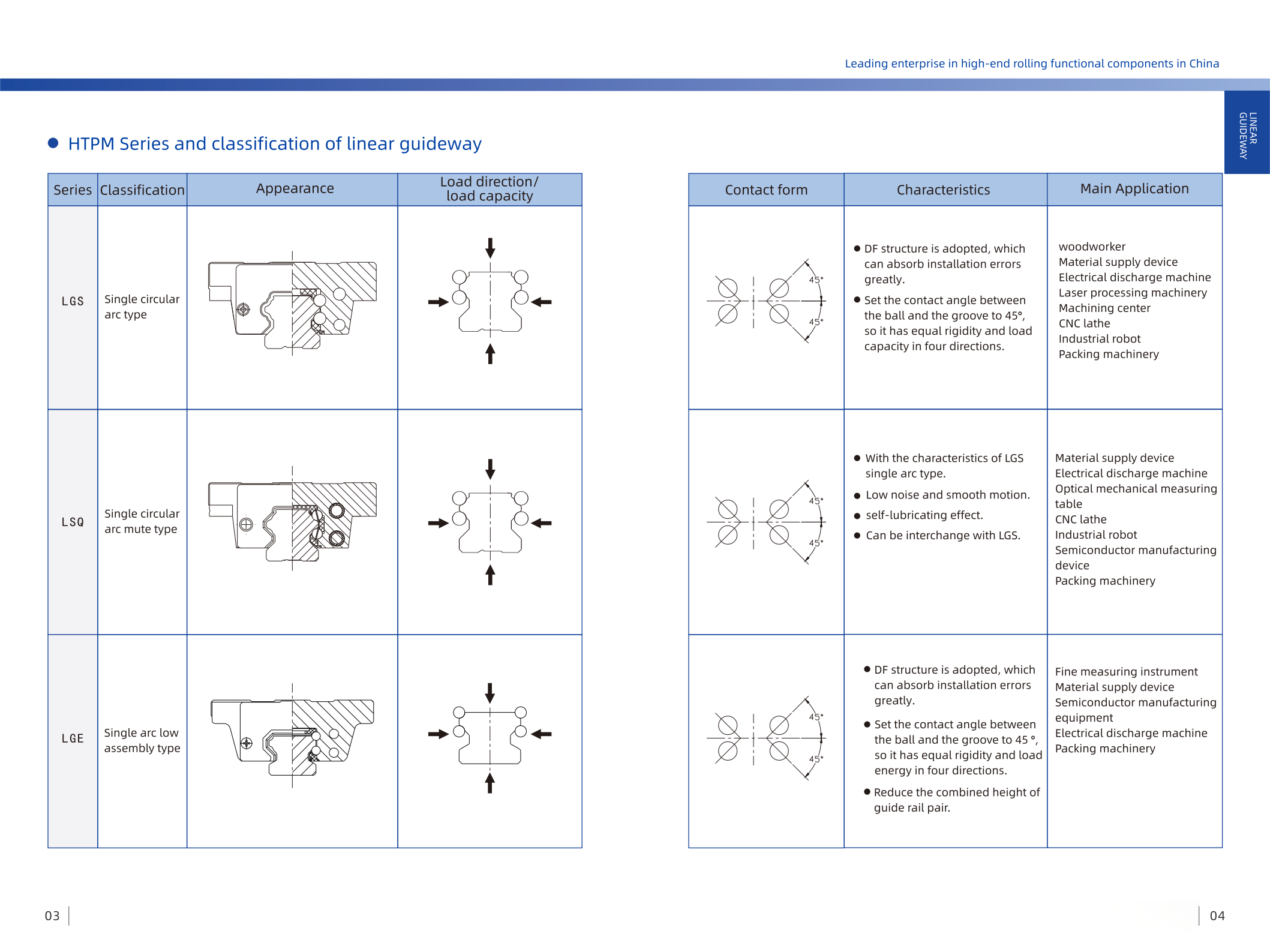

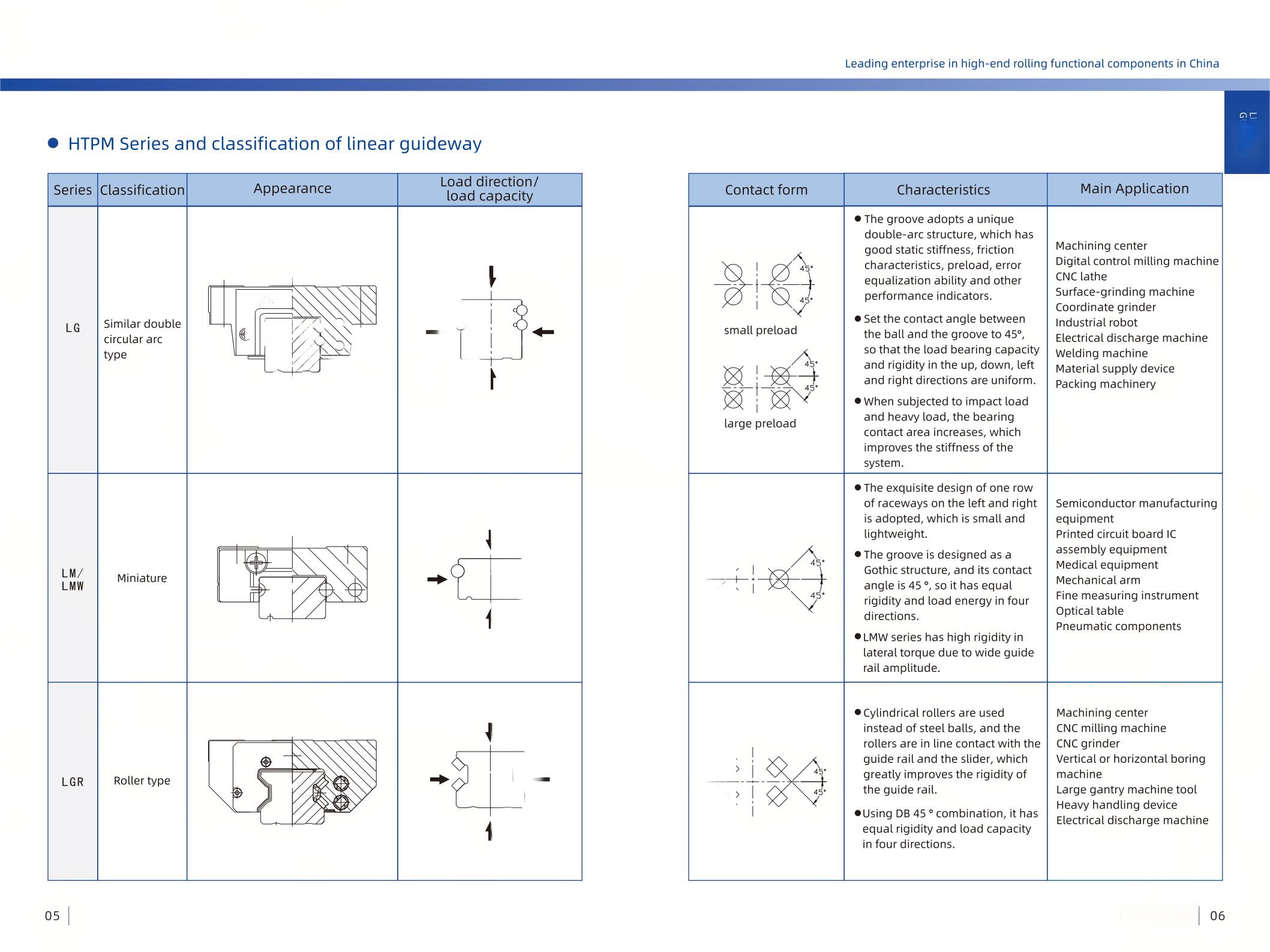

Types of Linear Guideway
Linear guideways are categorized based on their rolling elements and design:
Ball-Bearing Type: Uses steel balls as rolling elements. Known for low friction, high speed, and smooth operation; ideal for CNC machines and medical devices.
Roller-Type: Employs cylindrical rollers. Provides a larger contact area (line contact) for significantly higher rigidity and load capacity; used in heavy-duty industrial machinery.
Miniature Type: Compact versions designed for high-precision, small-scale equipment like semiconductor tools and lab instruments.
Sliding Contact (Plain): Simple surface-to-surface sliding (often with lubrication). Economical and robust in dirty environments, but has higher friction and lower precision.
Specialized Guides: Includes Cross-Roller Guides for limited travel with high accuracy, and Air Bearings for zero-friction motion in ultra-precise applications.
Features of Linear Guideway
Low Friction: Rolling contact reduces friction to ~1/50th of traditional sliding systems, enabling high speed with low driving force.

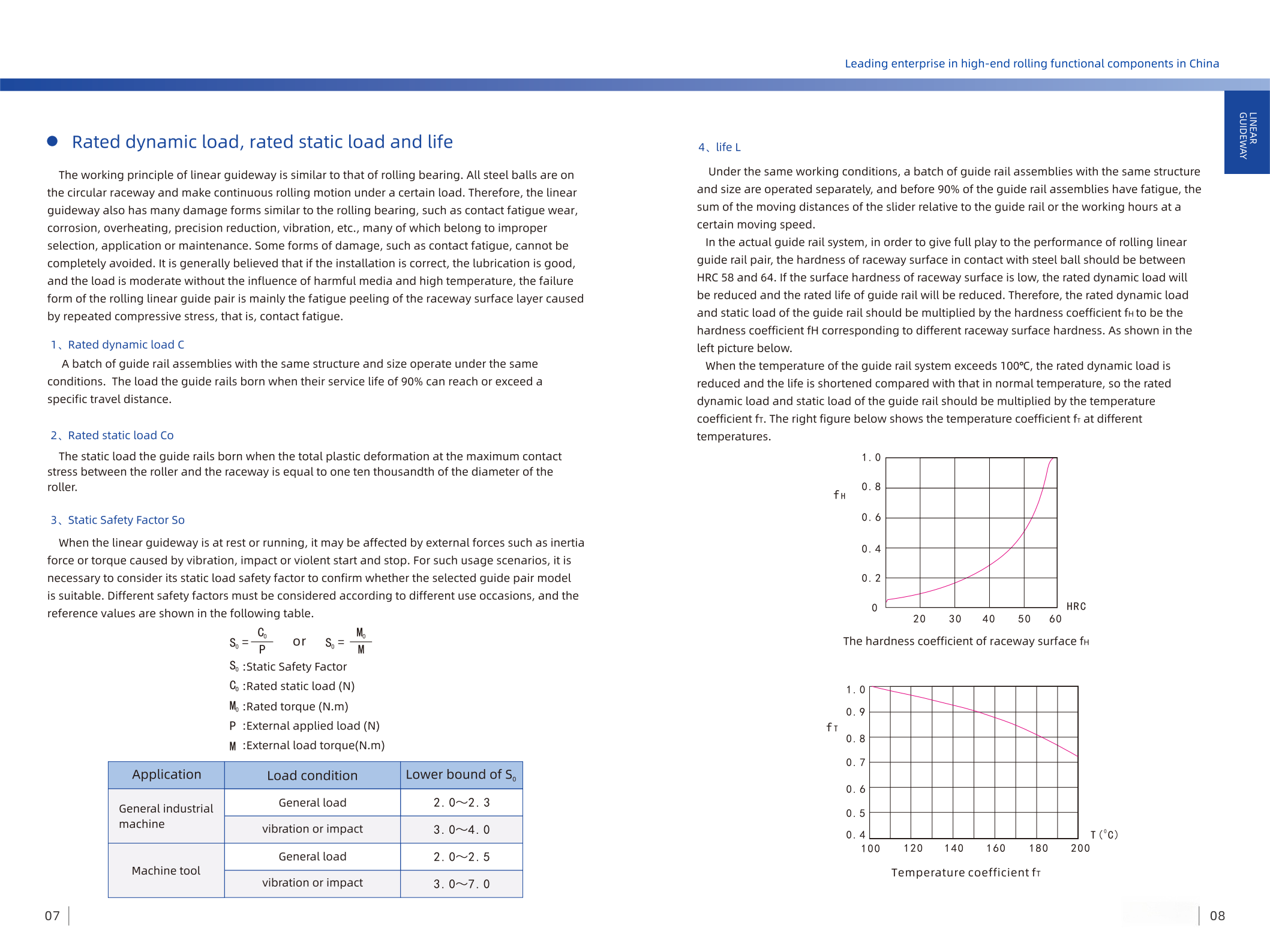

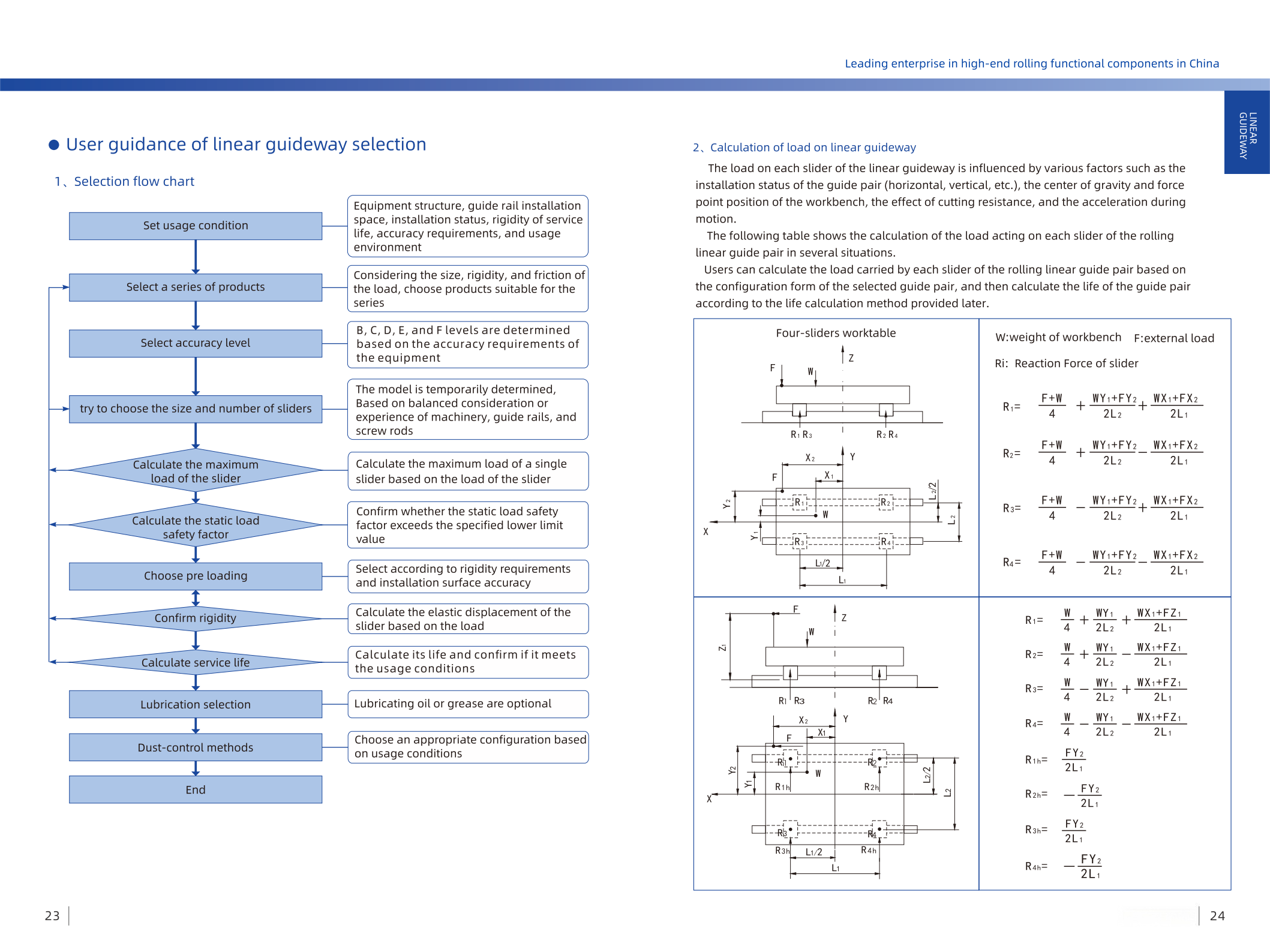

High Rigidity & Load Capacity: Optimized designs allow for equal load ratings in all four directions (radial, reverse radial, and lateral).
Positioning Accuracy: Minimal "stick-slip" effect allows for sub-micron repeatability and precise movement control.

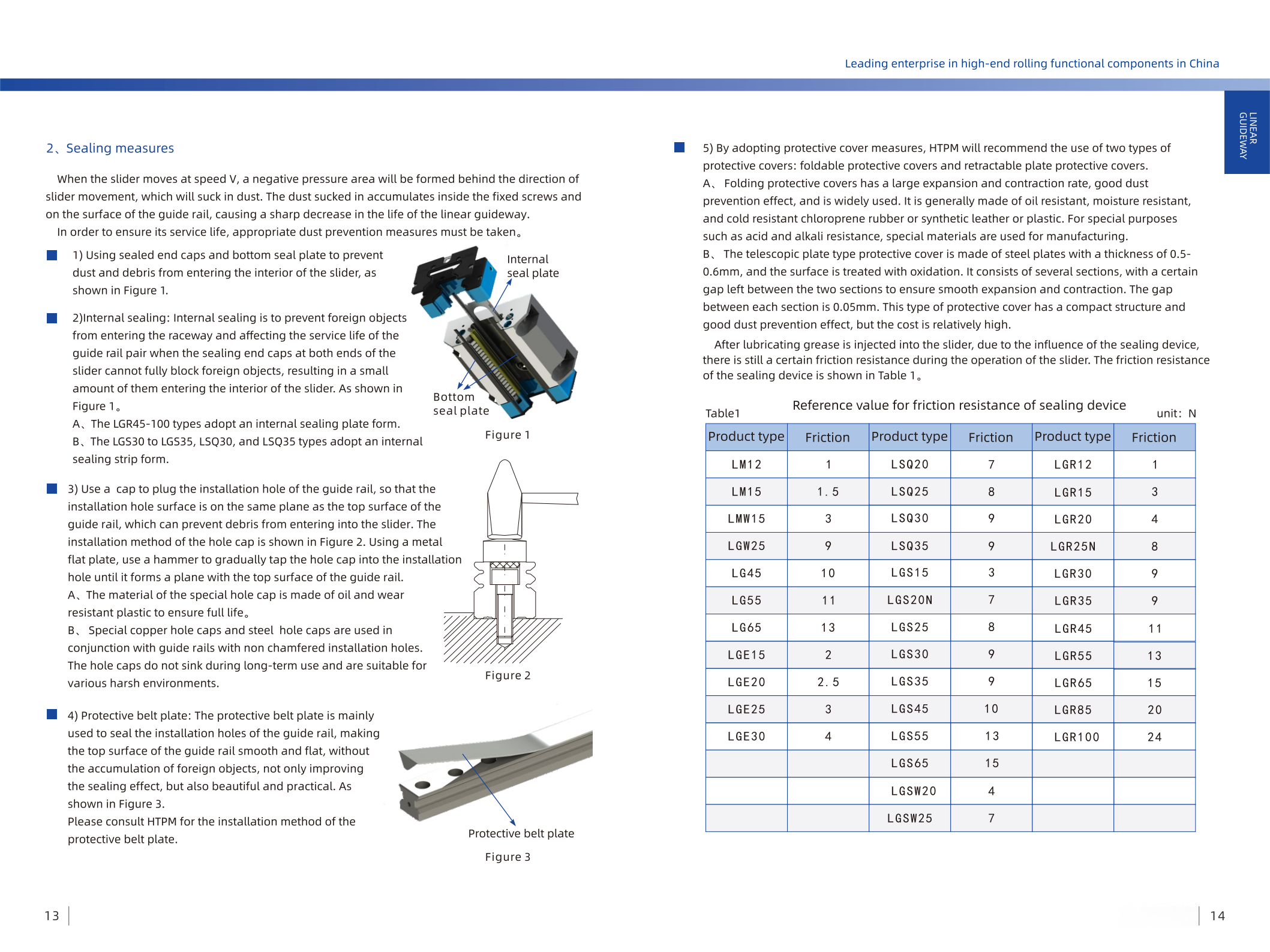

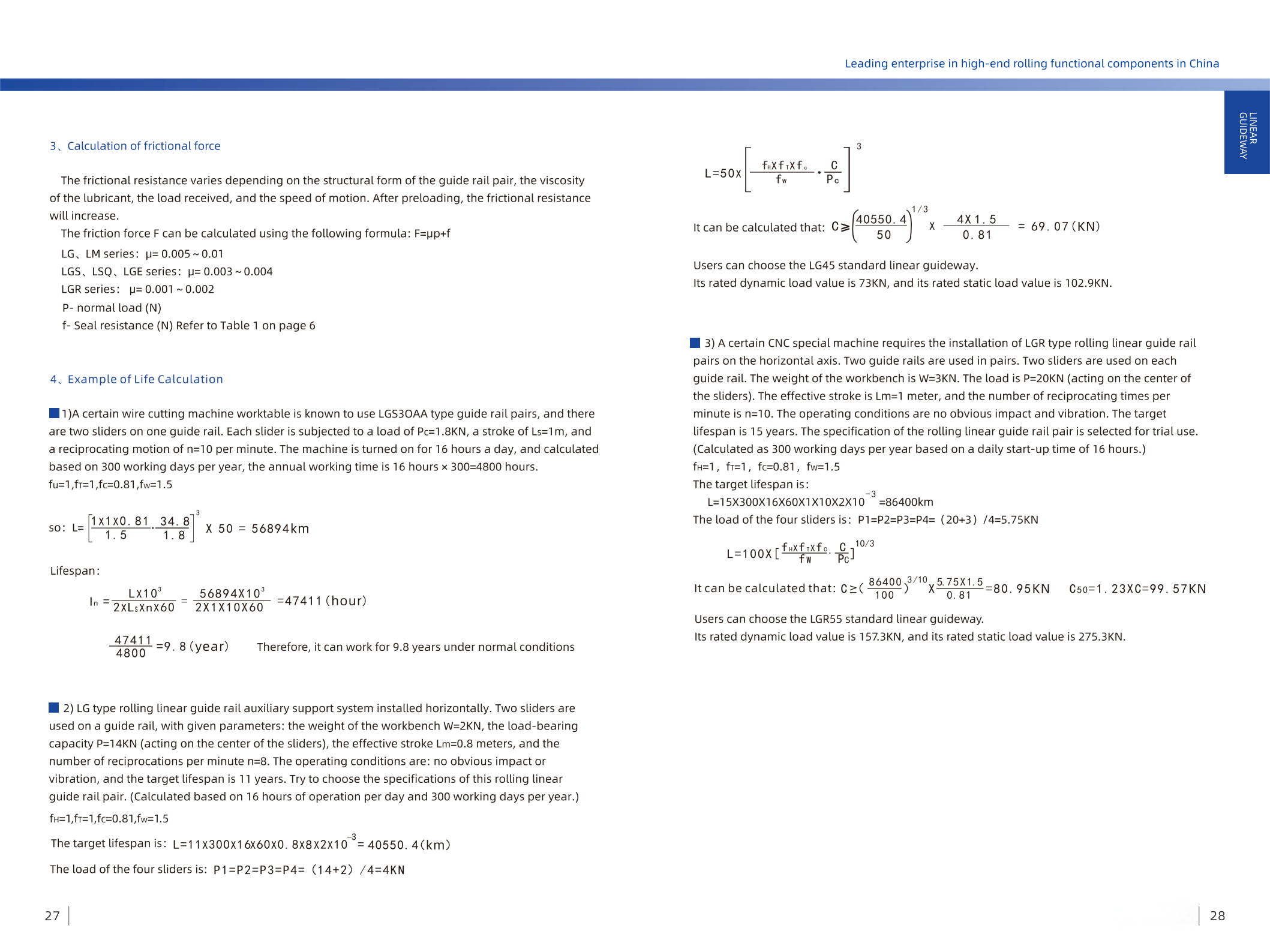

Long Service Life: Advanced seals and lubrication channels minimize wear, allowing for thousands of kilometers of travel.
Interchangeability: Many standard rails and blocks are interchangeable, simplifying maintenance and replacement.
Applications of Linear Guideway
CNC Machining: Guiding tool heads and worktables with high rigidity and micron-level precision.
Robotics & Automation: Used in gantry robots, pick-and-place systems, and robotic joints for fast, repeatable motion.
Semiconductor Manufacturing: Critical for wafer handling and lithography where vibration-free, high-precision motion is mandatory.
Medical Equipment: Smooth and silent movement for MRI/CT scanner tables and surgical robotic arms.
3D Printing: Ensuring accurate layer-by-layer material deposition.
Price of Linear Guideway
The price of a linear guideway depends primarily on its type, precision grade, and size, typically ranging from $80 to $150 per meter for standard ball-type models and up to $200 to $400 per meter for high-load roller types.
Individual components are often sold separately: a standard precision block (carriage) can cost between $40 and $100, while specialized or high-precision blocks can exceed $300.
Linear Guideway OEM and Customization
Over 50% of linear motion products are customized to provide competitive advantages. OEM services often include:
Modified Standards: Minor changes to rail lengths, special coatings (for corrosion resistance), or specific grease for cleanrooms/vacuums.
Full Customization: Unique geometries, specific material selections (like stainless steel), and integrated measuring systems.
Integrated Units: Pre-assembled stages that combine the guideway with drive elements like ball screws or belts
Linear Guideway Manufacturer
Luoyangsongju is a leading linear guideway manufacturer in China, providing a wide range of linear guideways for almost any application. Feel free to contact us if you are looking for a linear guideway.
Linear Guideway FAQ
-

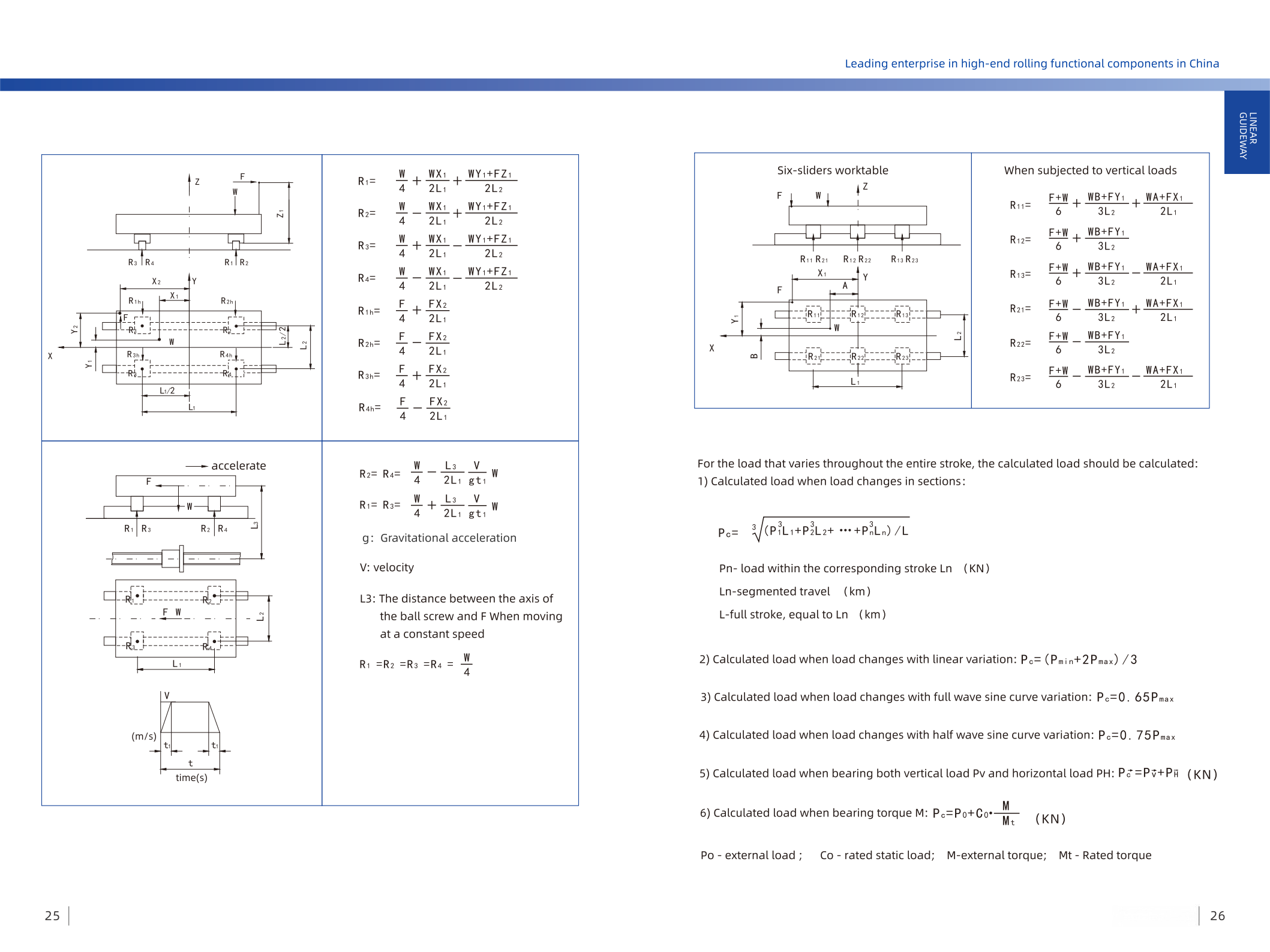

What is Preload?
It is an internal load applied to rolling elements during assembly to eliminate clearance and increase system stiffness.
-

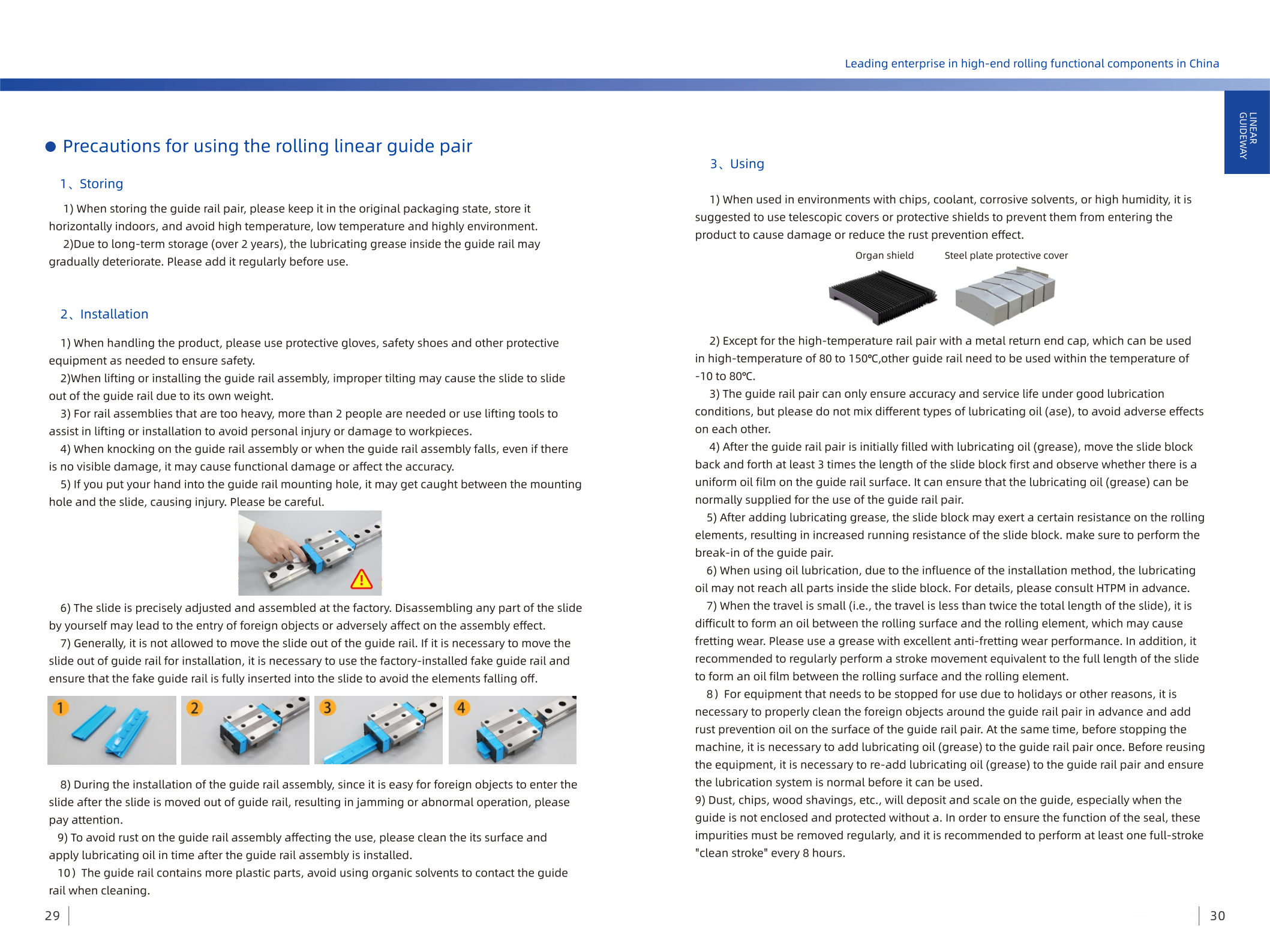

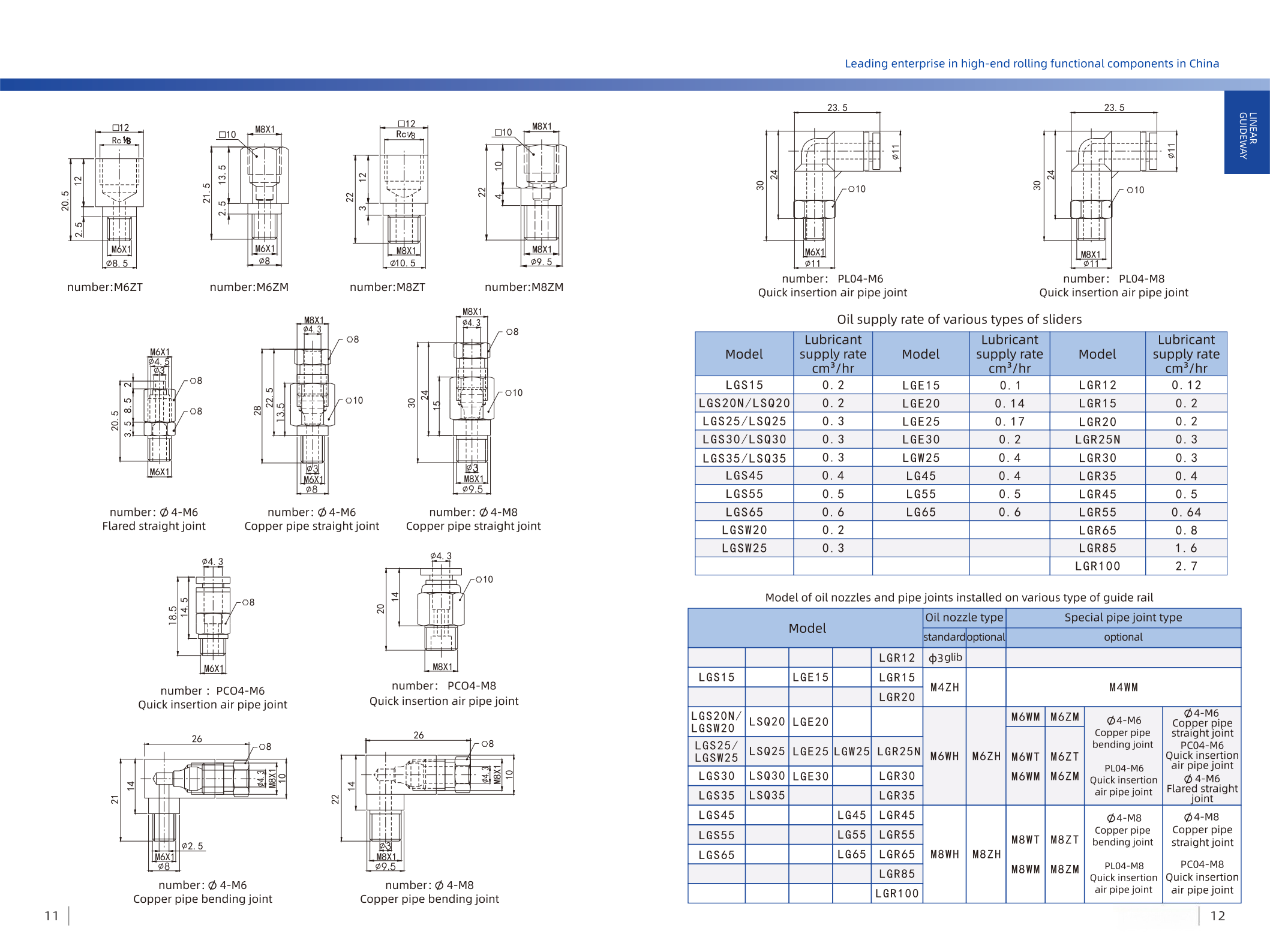

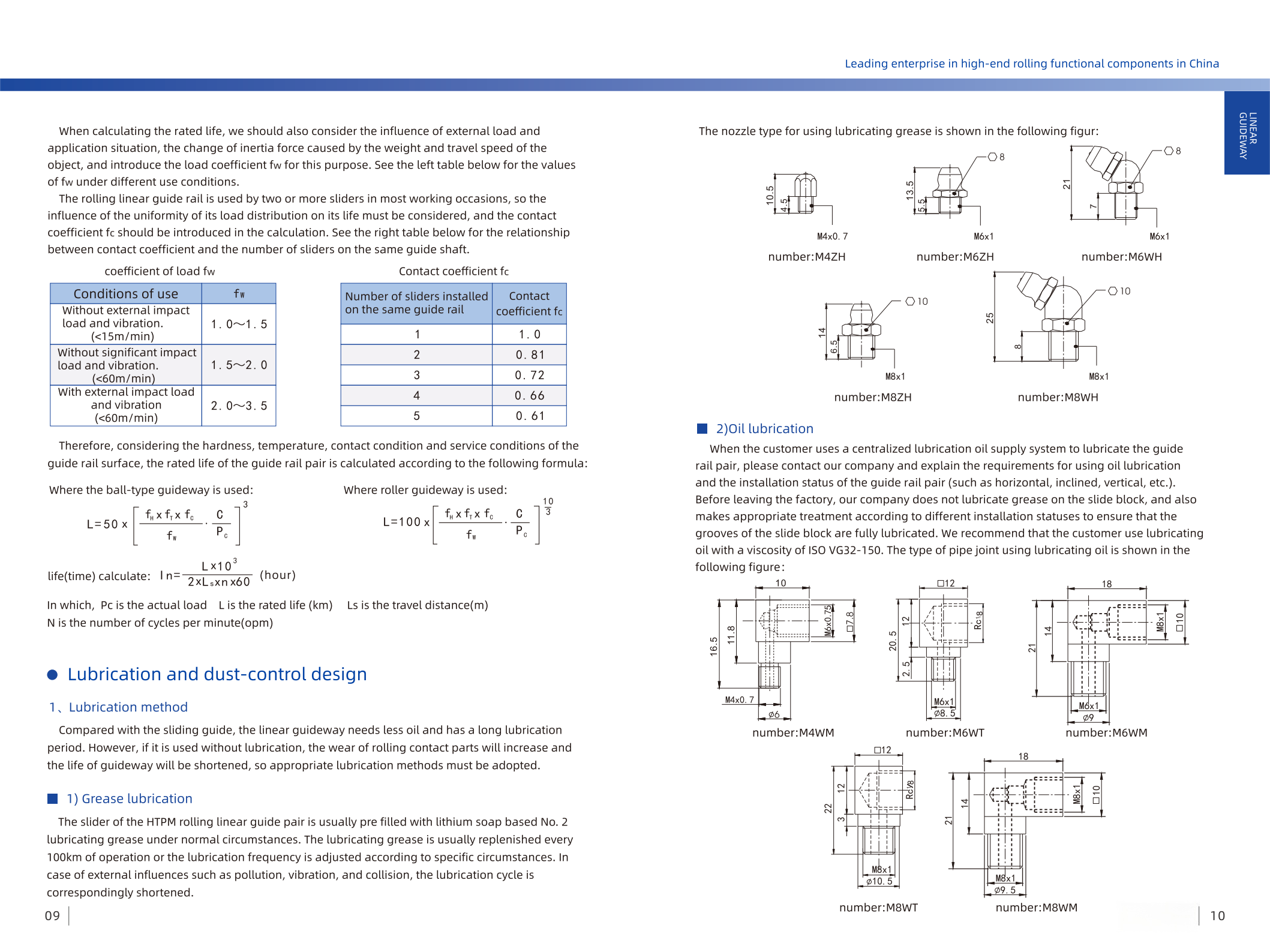

How often should I lubricate?
Intervals depend on speed and environment; however, many modern blocks feature self-lubricating kits that extend service life for years.
-

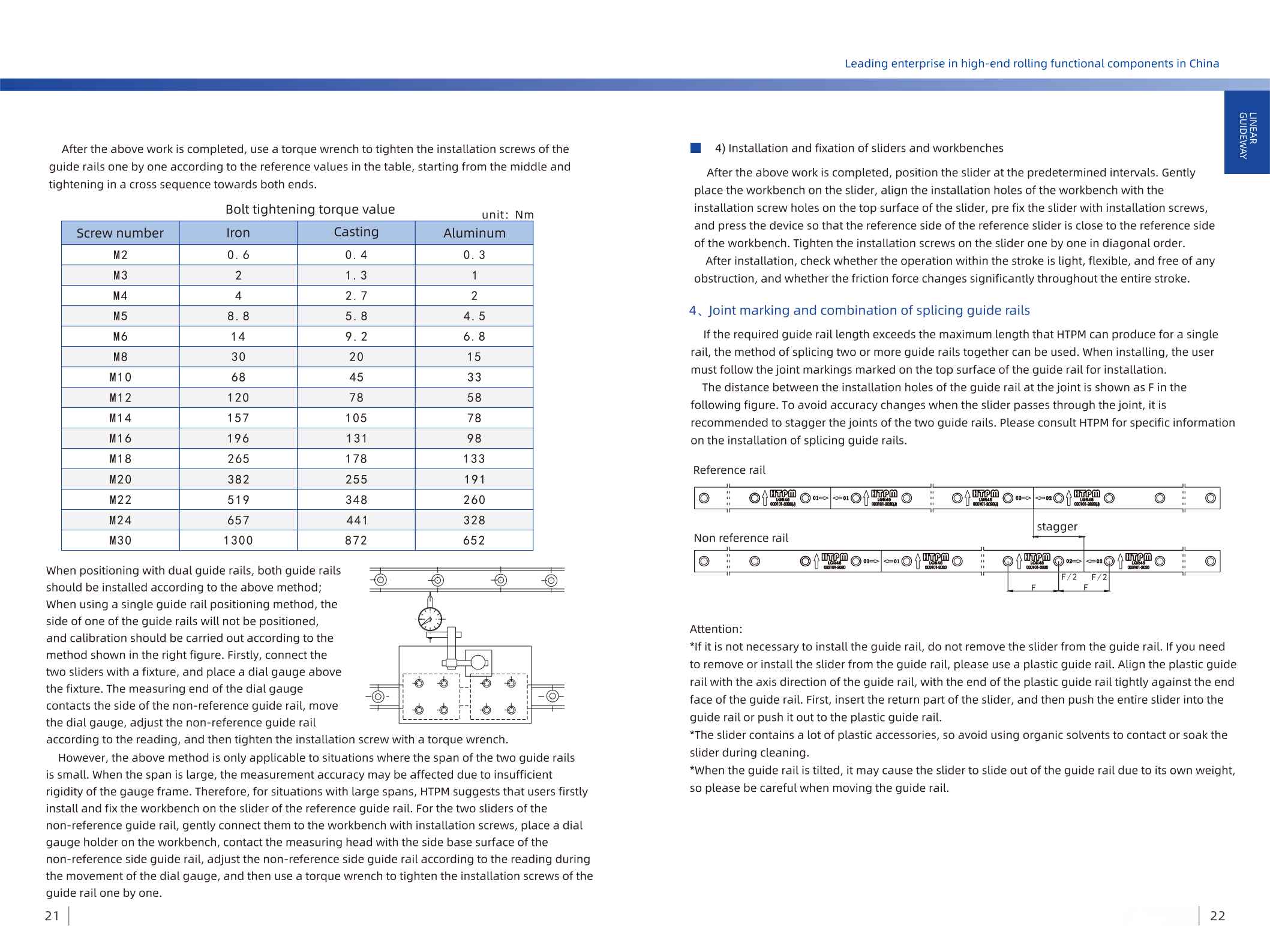

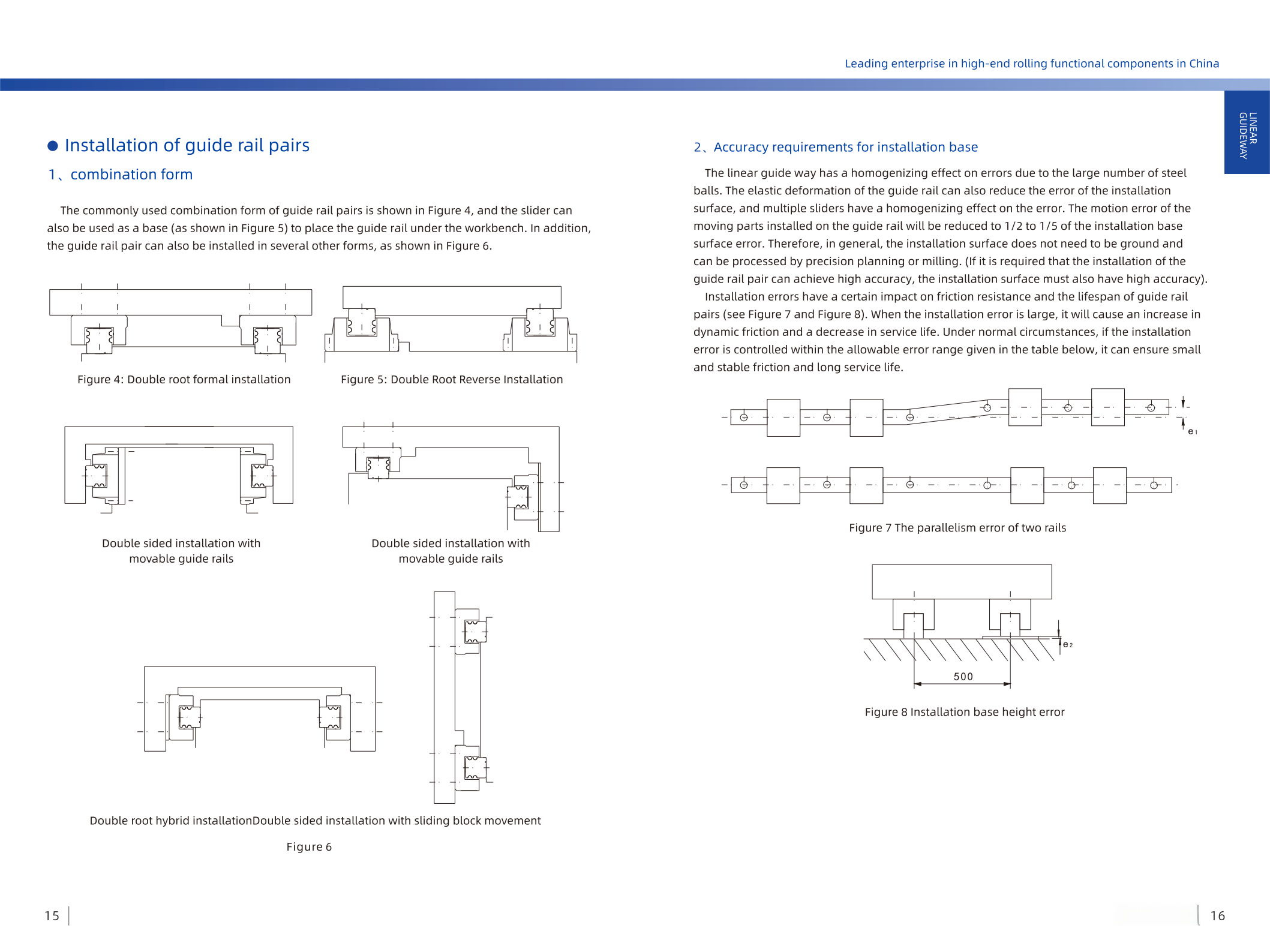

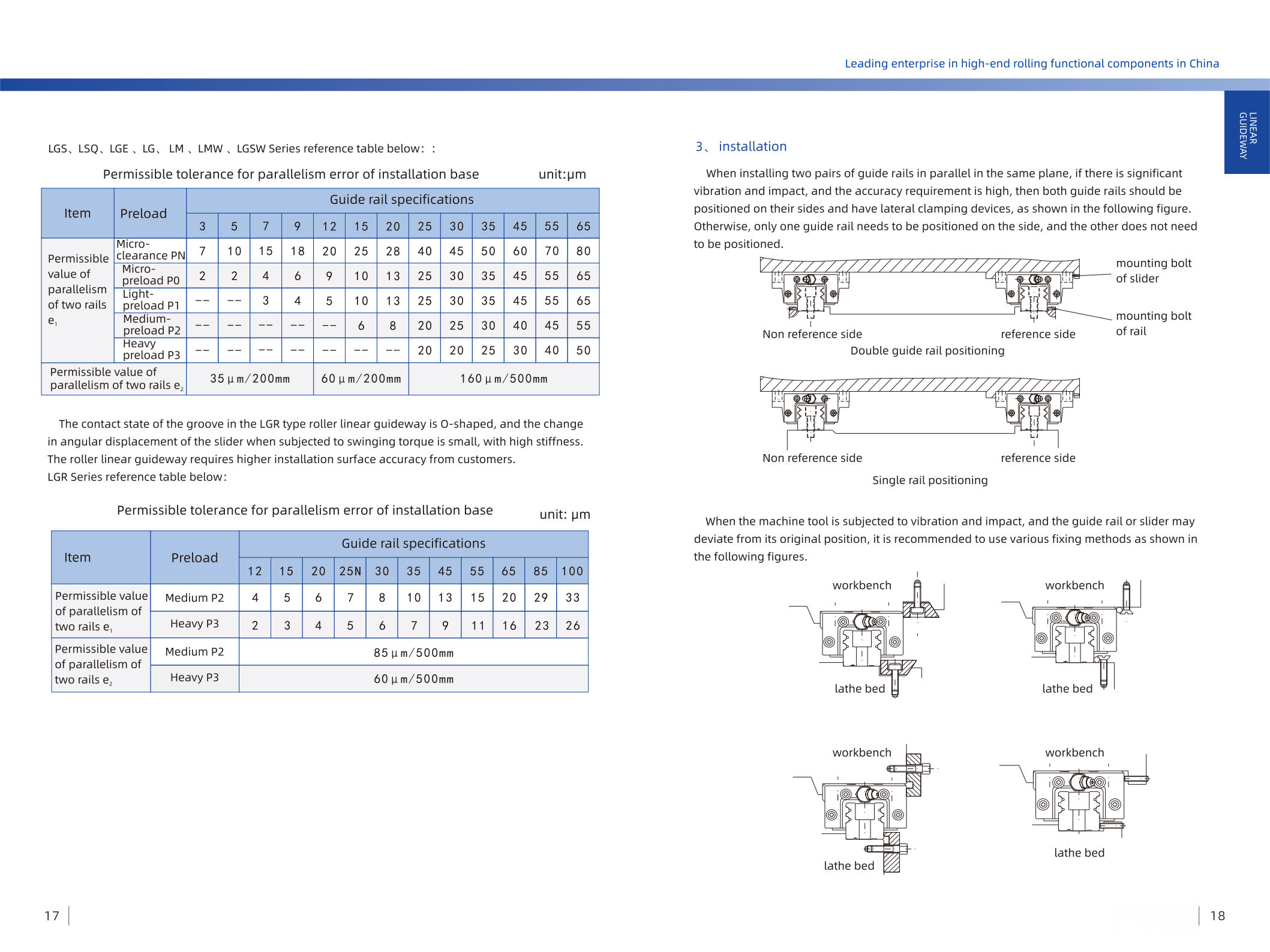

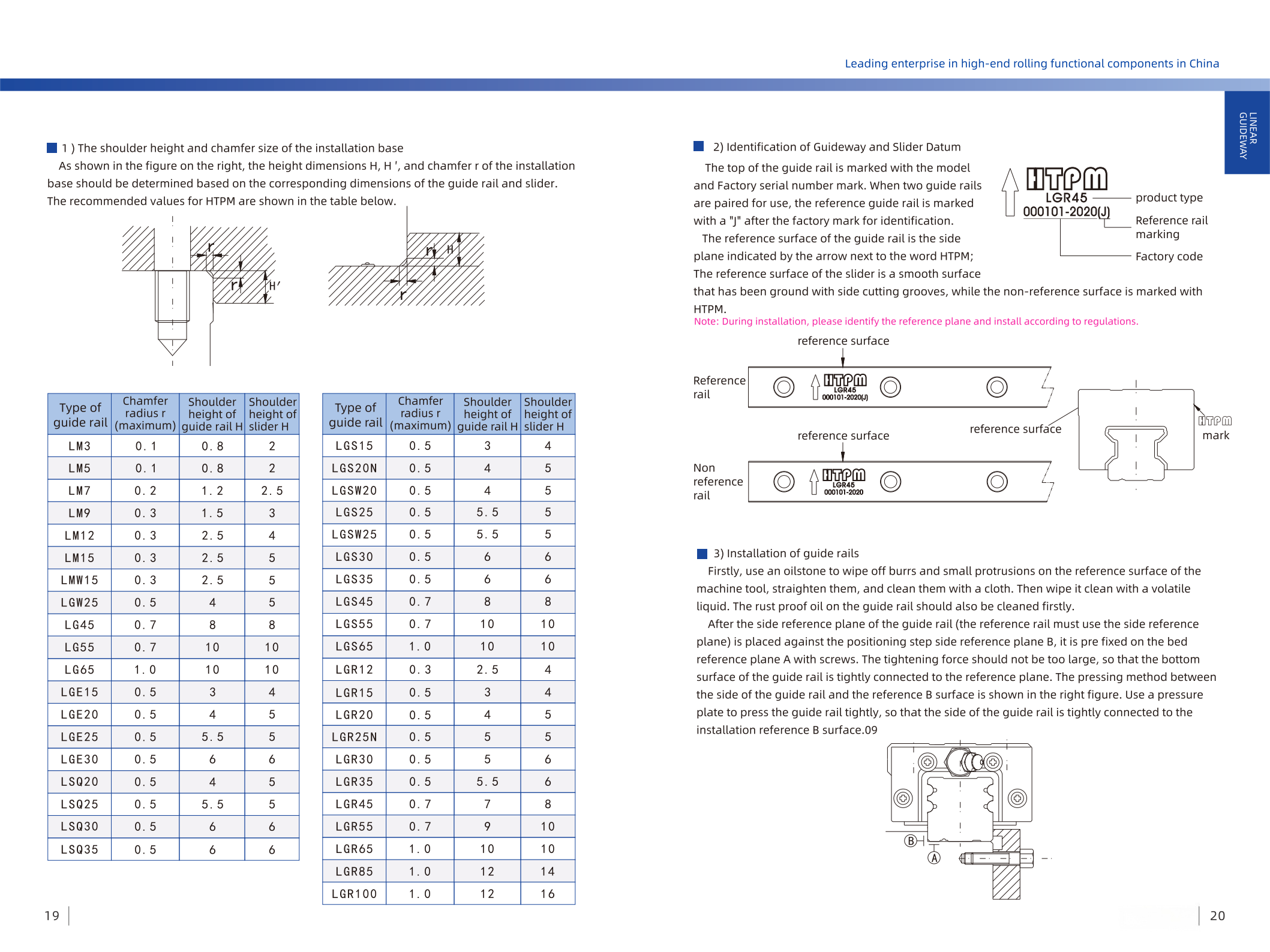

Can rails be joined?
Yes, rails can be "butt-jointed" to create virtually unlimited travel lengths.
-
What is "Cage Creep"?
In non-recirculating guides, the bearing cage can shift off-center over time, requiring correction strokes.
