Ballscrew

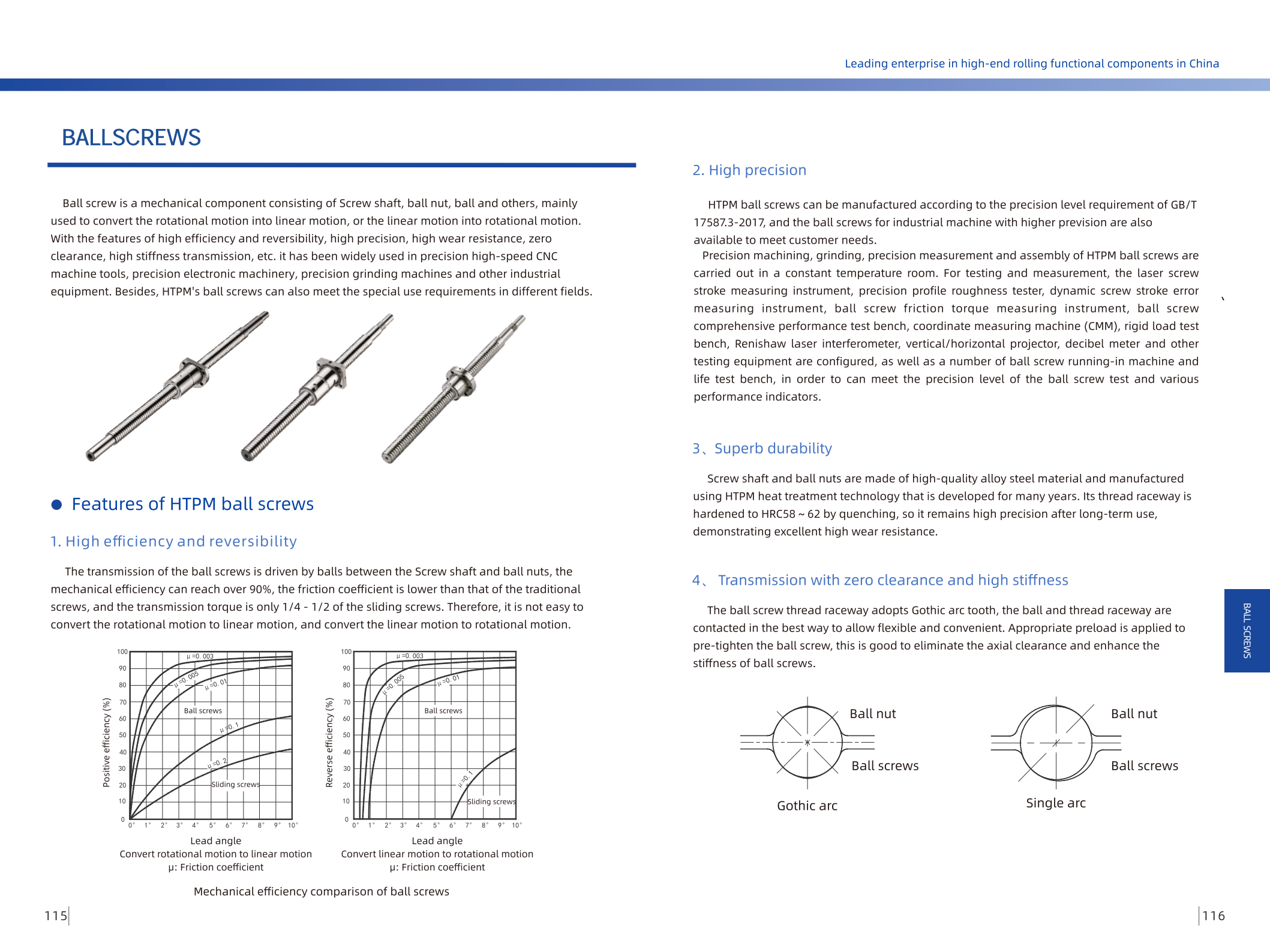

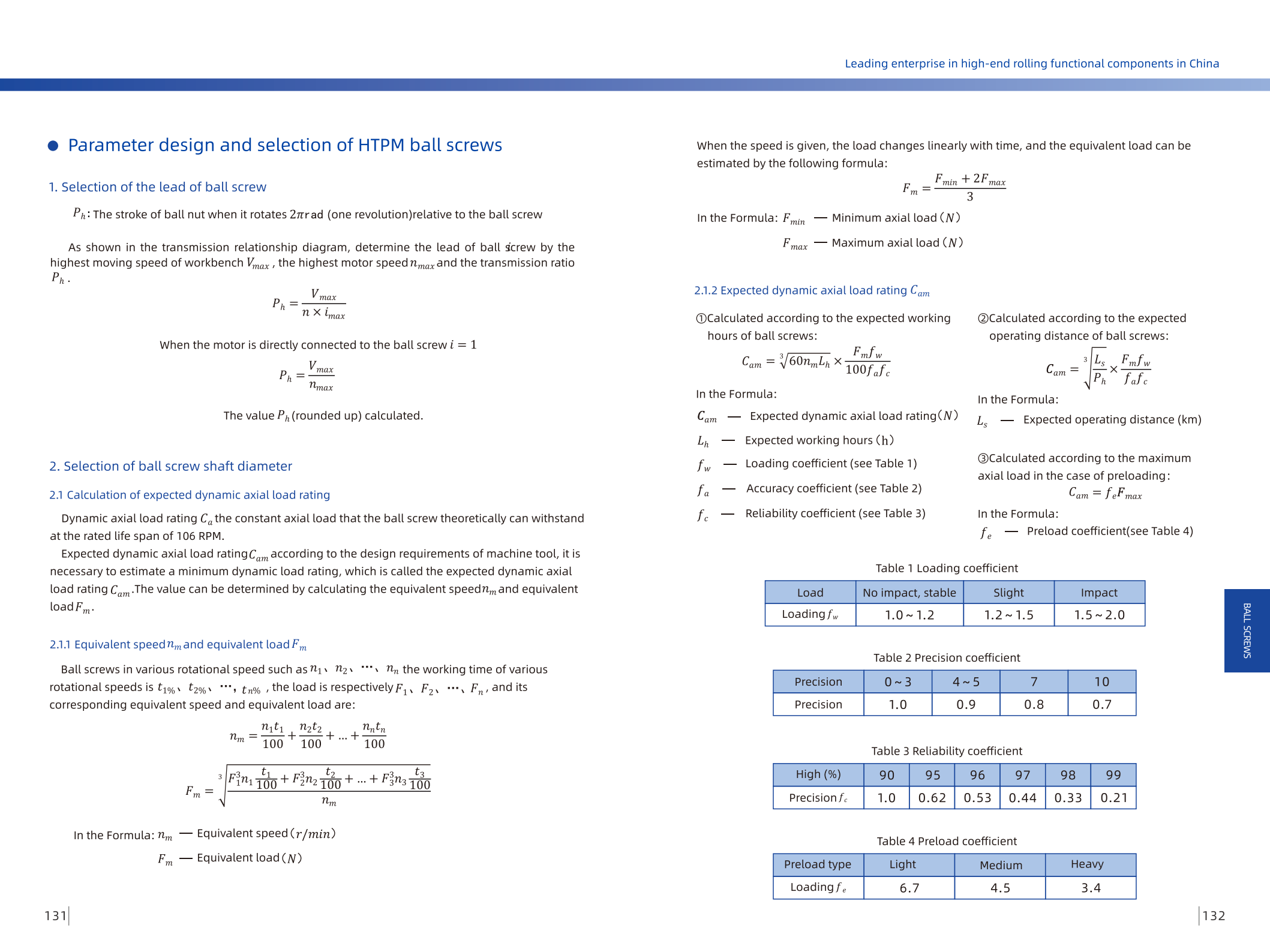

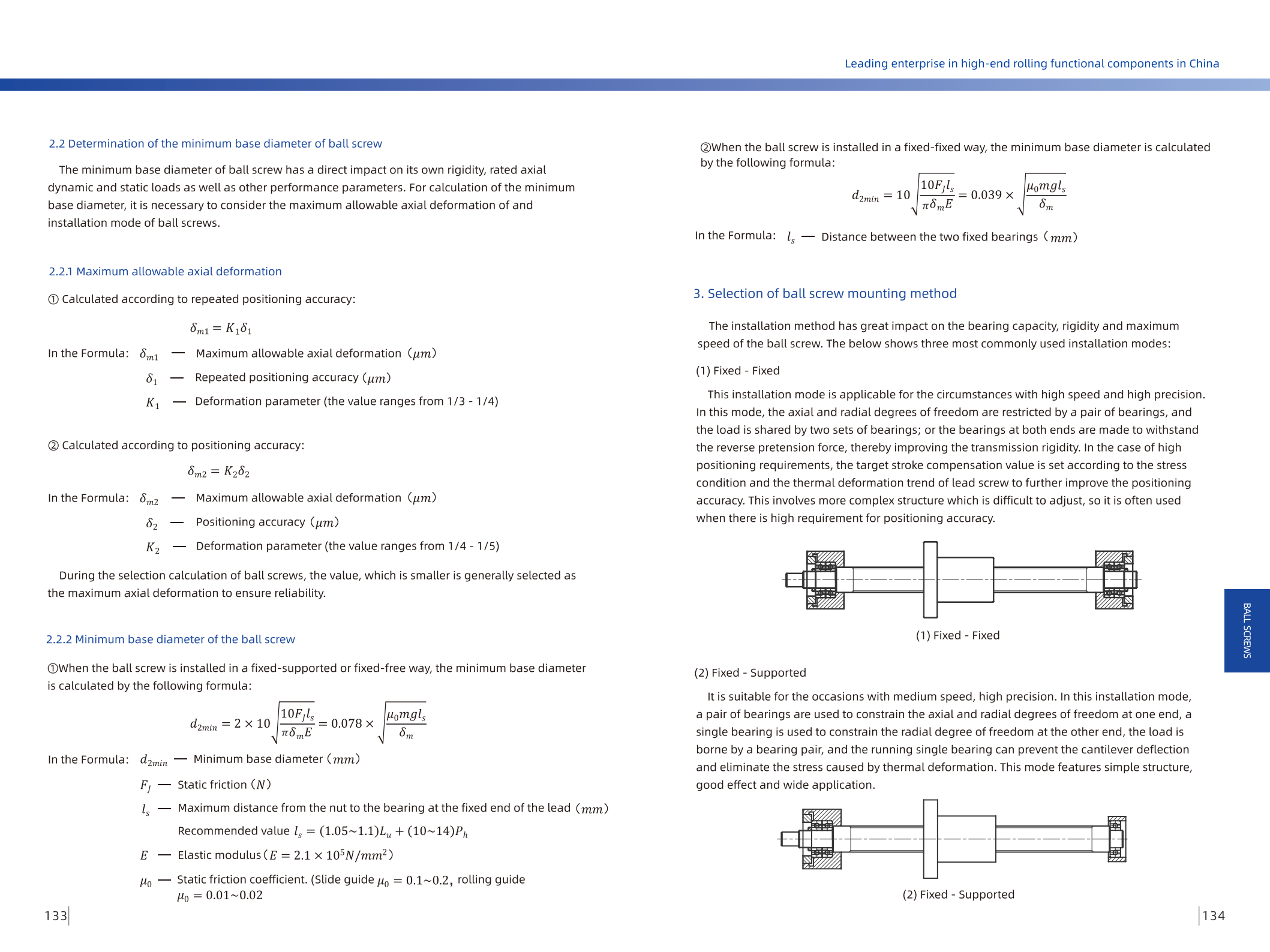

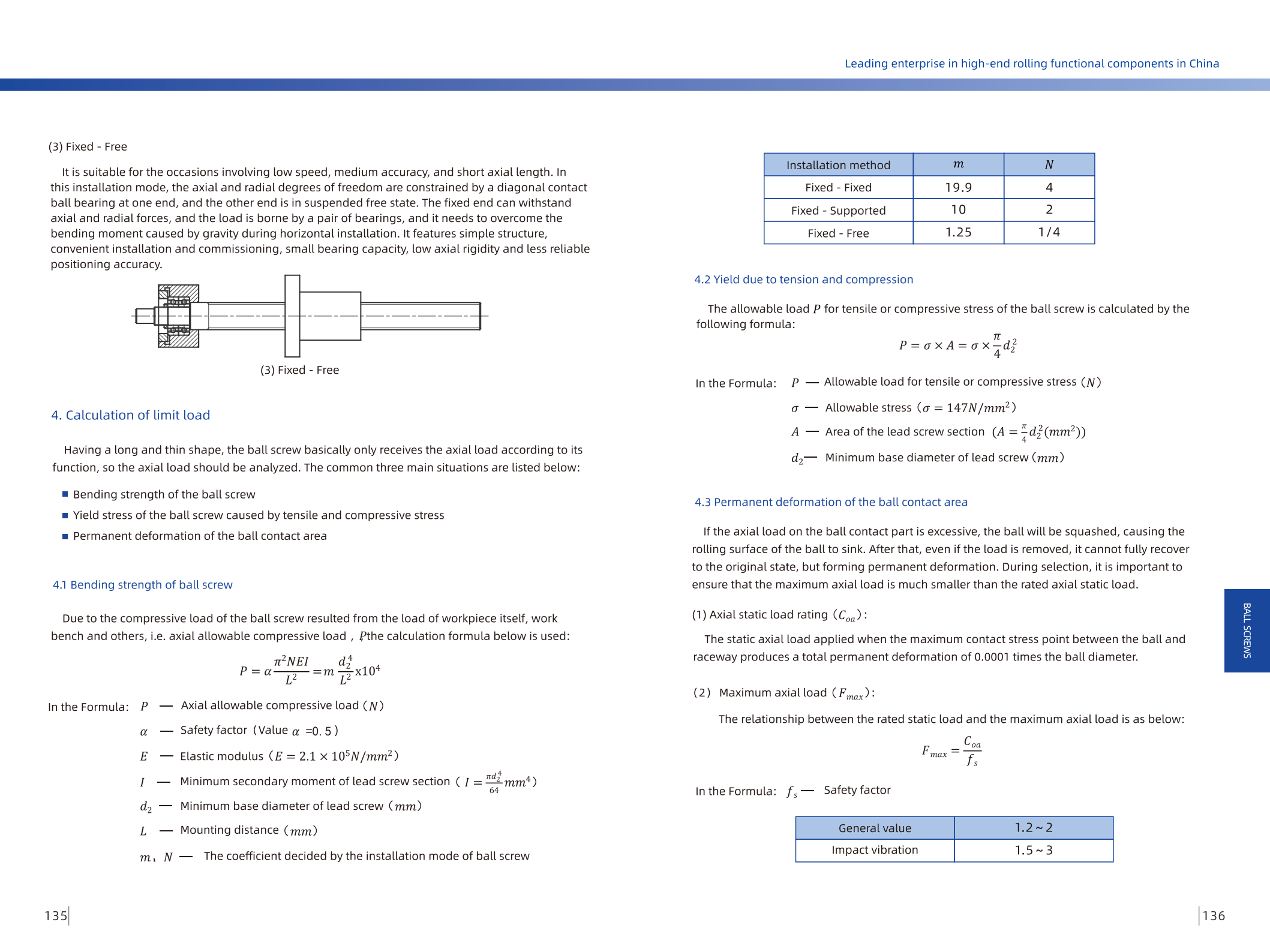

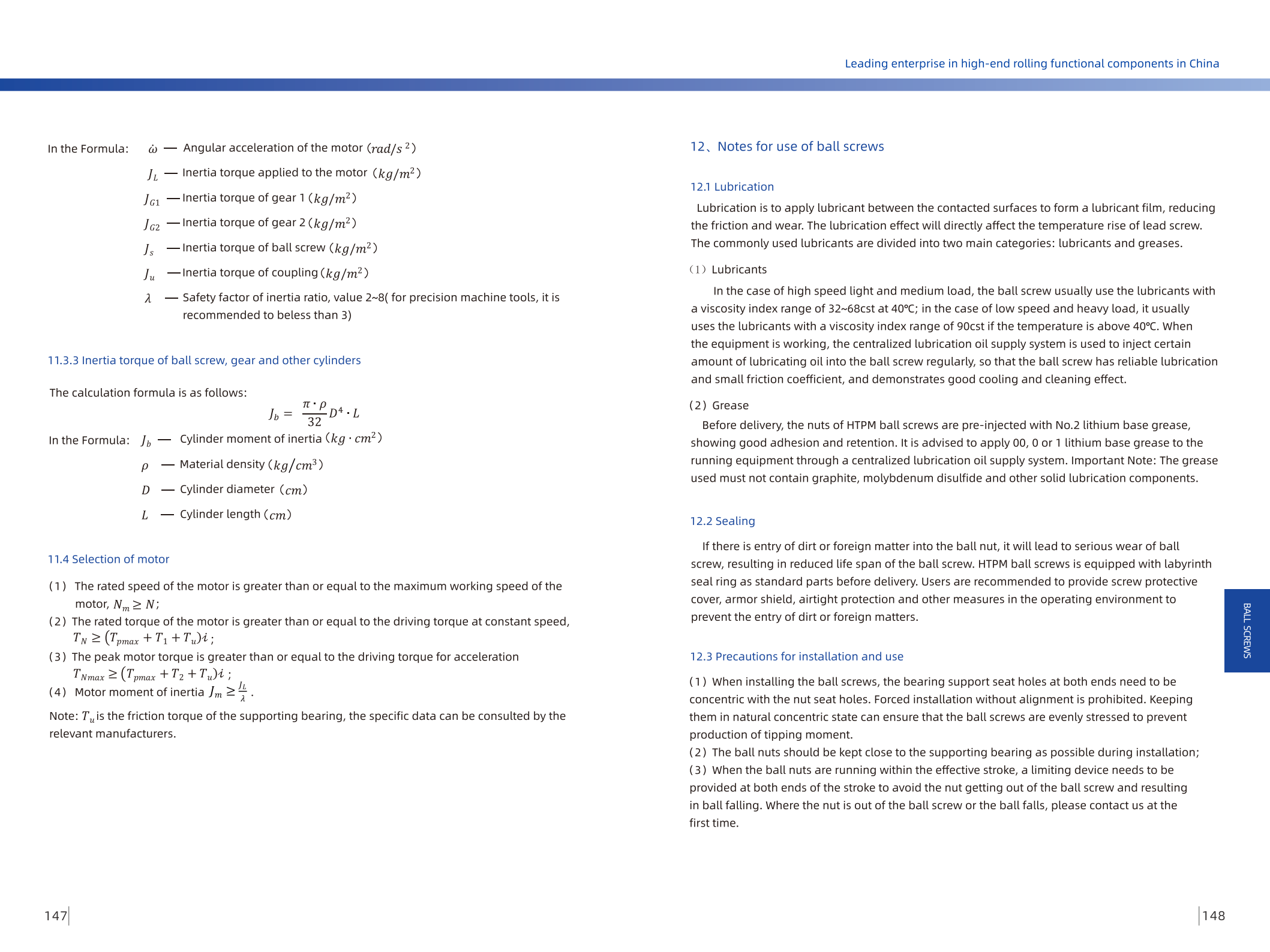

What is a Ball Screw?
A ball screw is a mechanical linear actuator that converts rotational motion into linear motion (or vice versa) with very low friction. It consists of a threaded shaft (screw) and a matching nut, with recirculating ball bearings placed in the helical grooves between them. As the screw or nut rotates, the balls roll along the grooves, transmitting motion and force efficiently. This rolling action replaces the sliding contact found in conventional lead screws, greatly reducing friction and wear.

Key Characteristics (Features)
1.High efficiency – Efficiency can reach over 90% due to rolling friction, much higher than sliding screws (typically 20-40%).
2.Low friction and wear – Rolling balls generate minimal heat and prolong service life.
3.High positioning accuracy – Minimal backlash (especially with preloaded nuts) enables precise motion control.

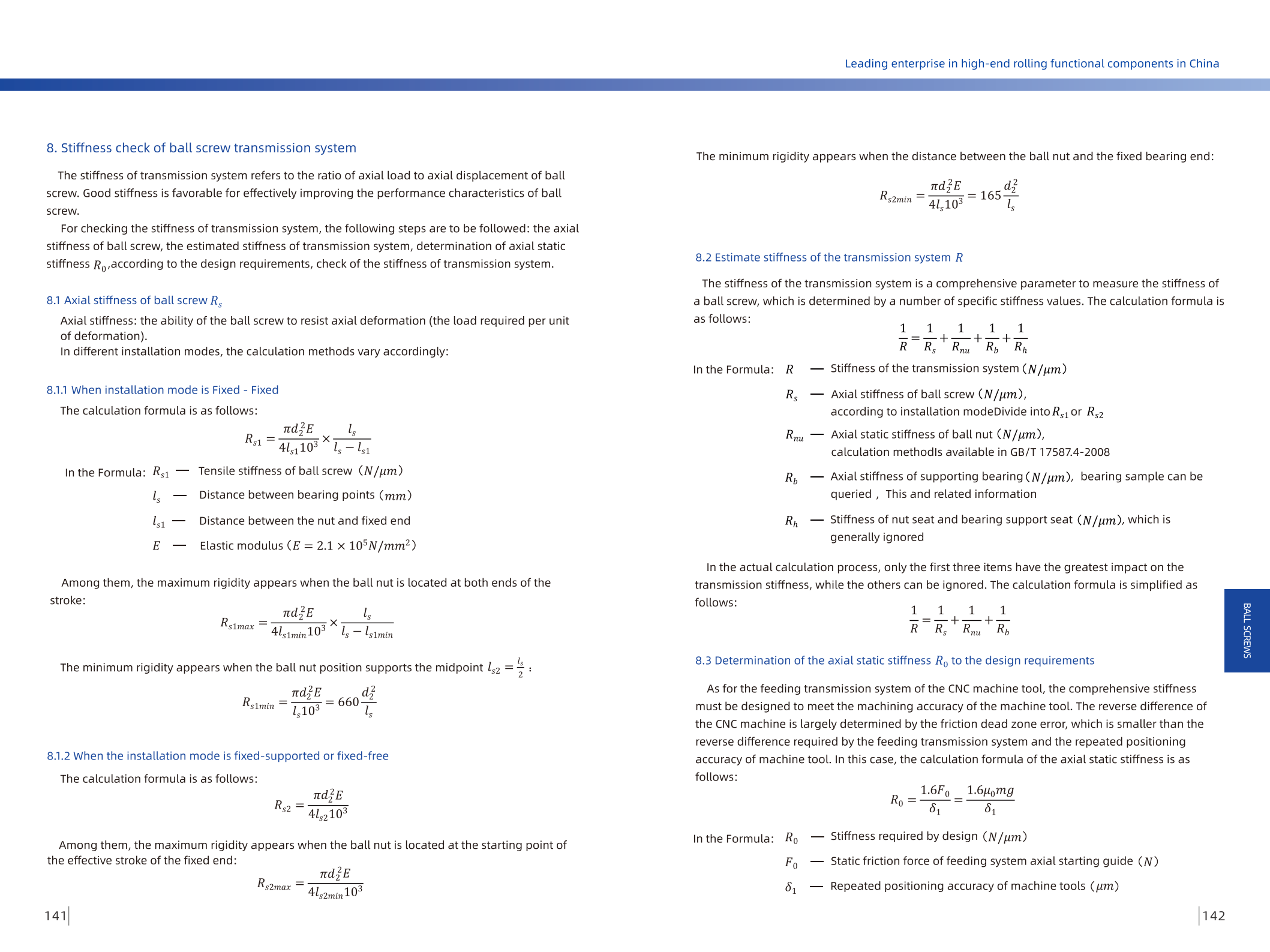

4.High rigidity – Suitable for heavy loads and high-speed applications.

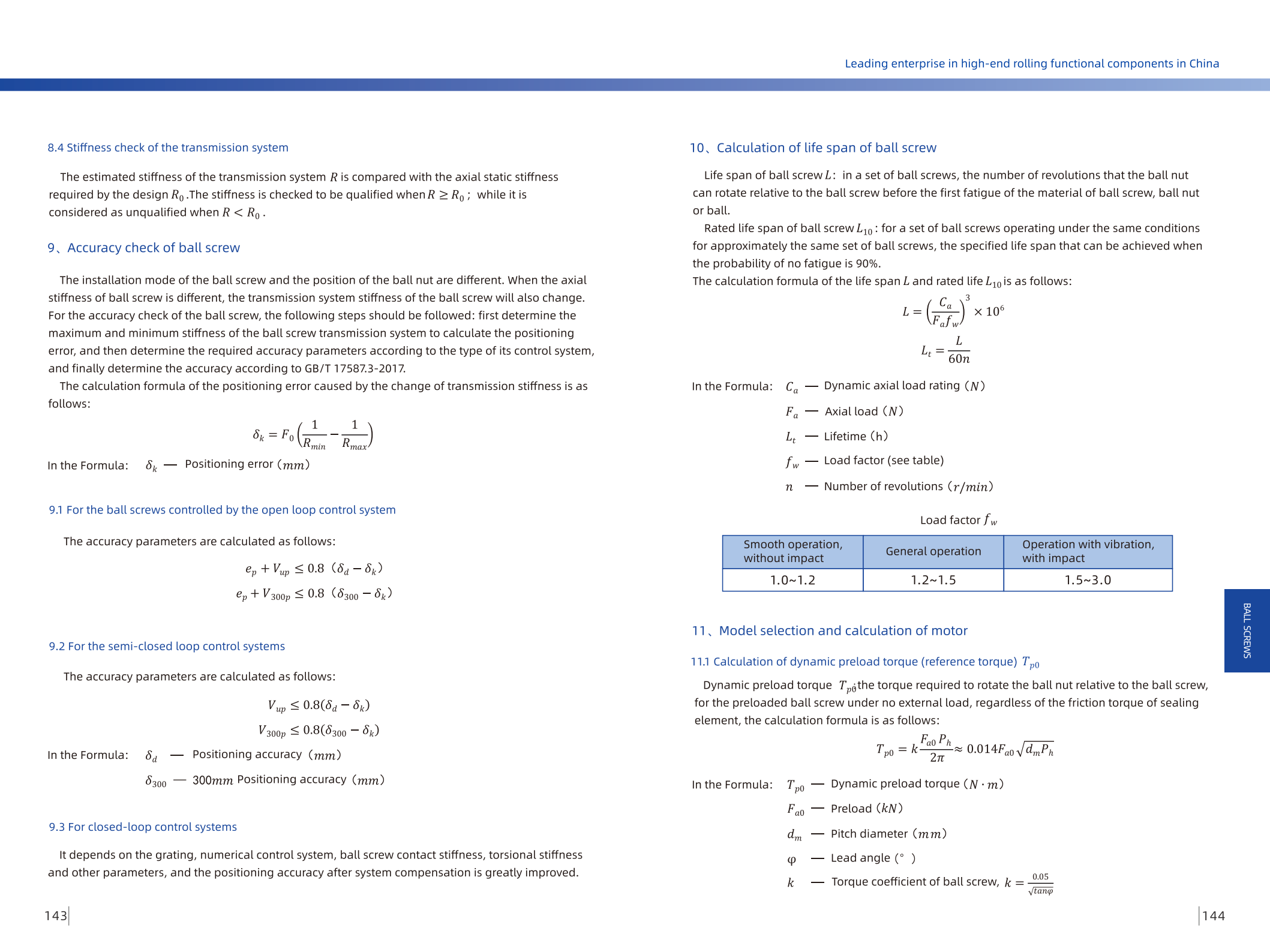

5.Long service life – Properly lubricated ball screws offer predictable fatigue life.
6.Smooth operation – No stick‑slip effect at low speeds.

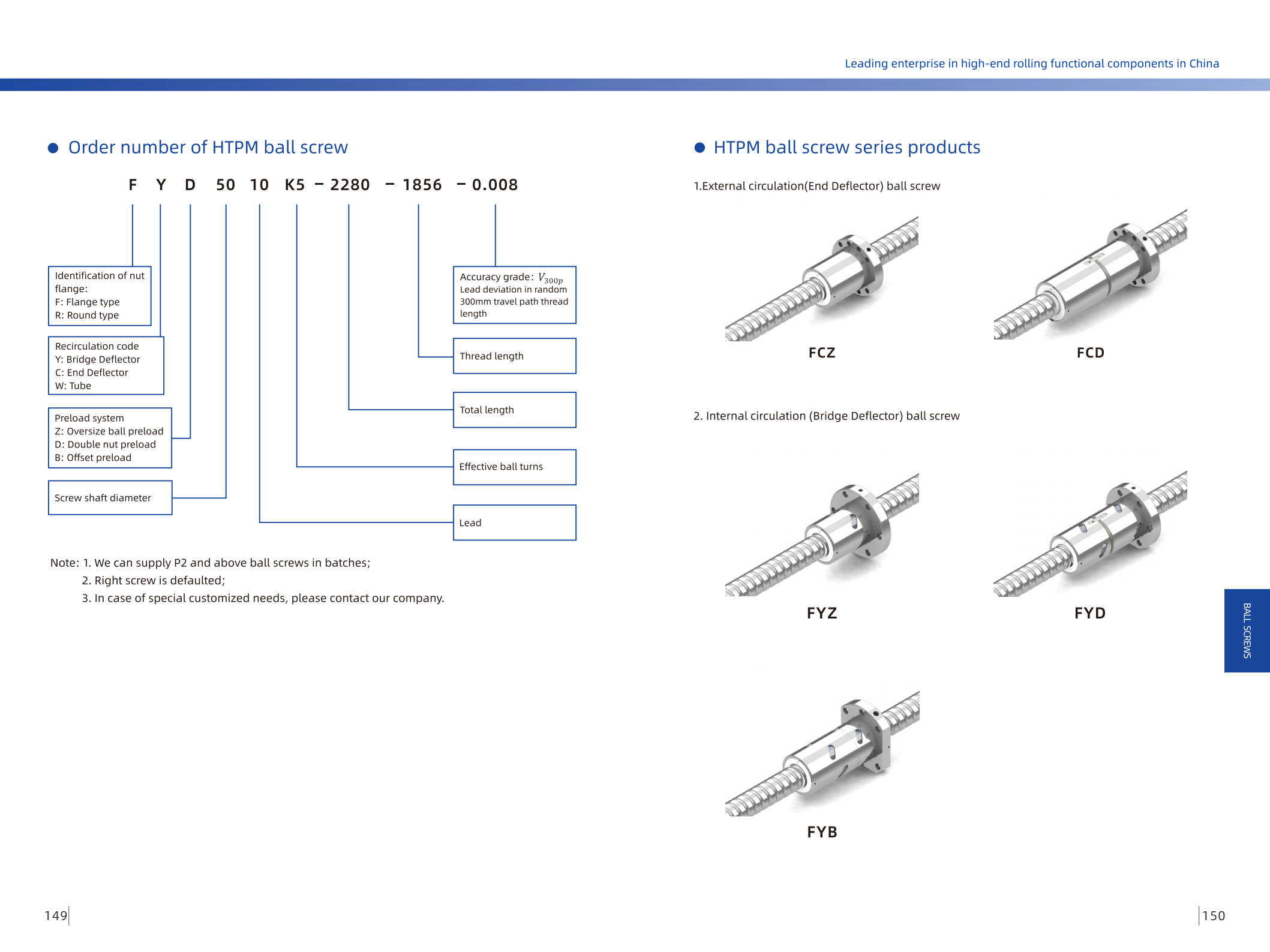

What are the main types?
Ball screws are commonly classified by:

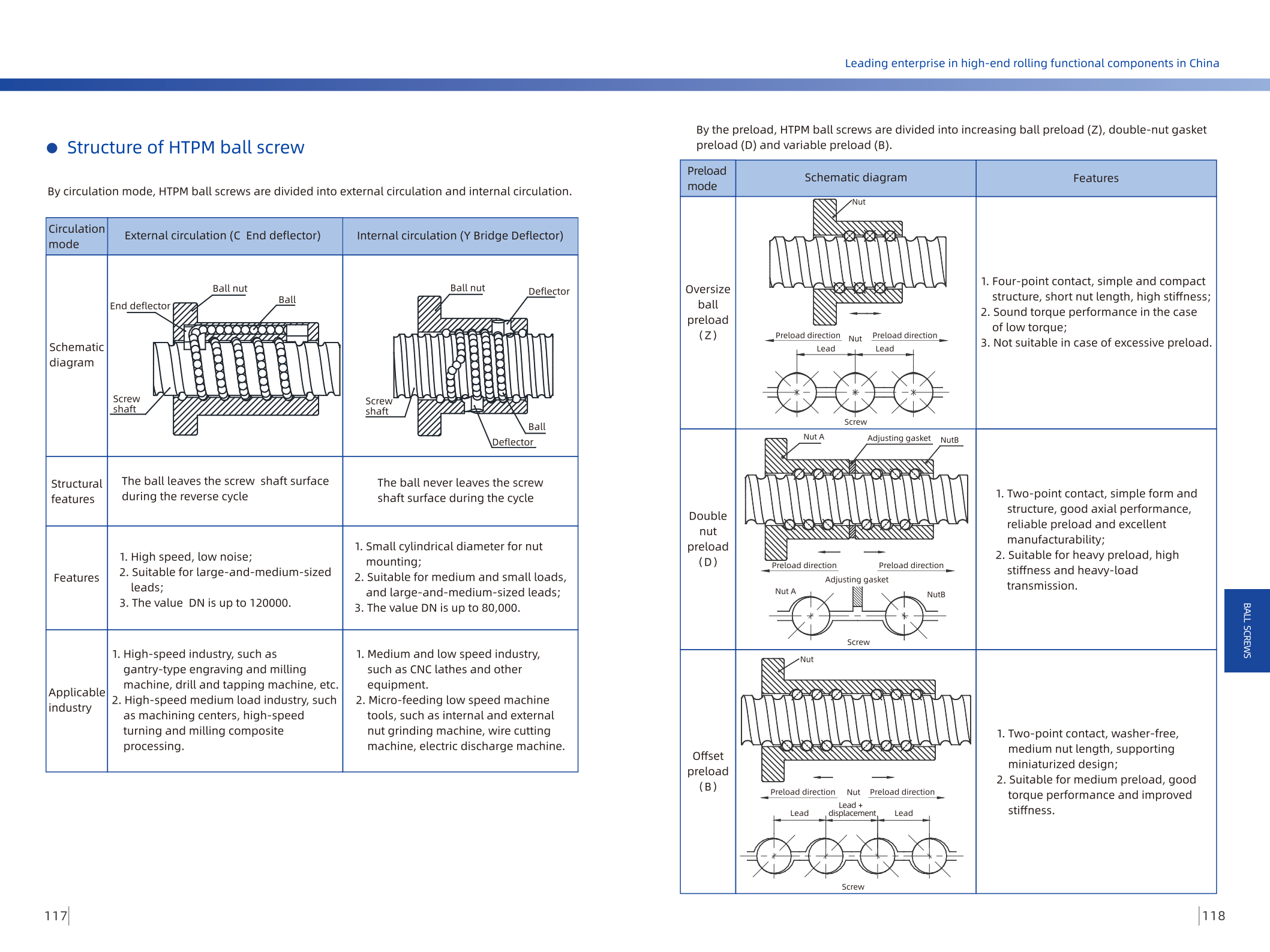

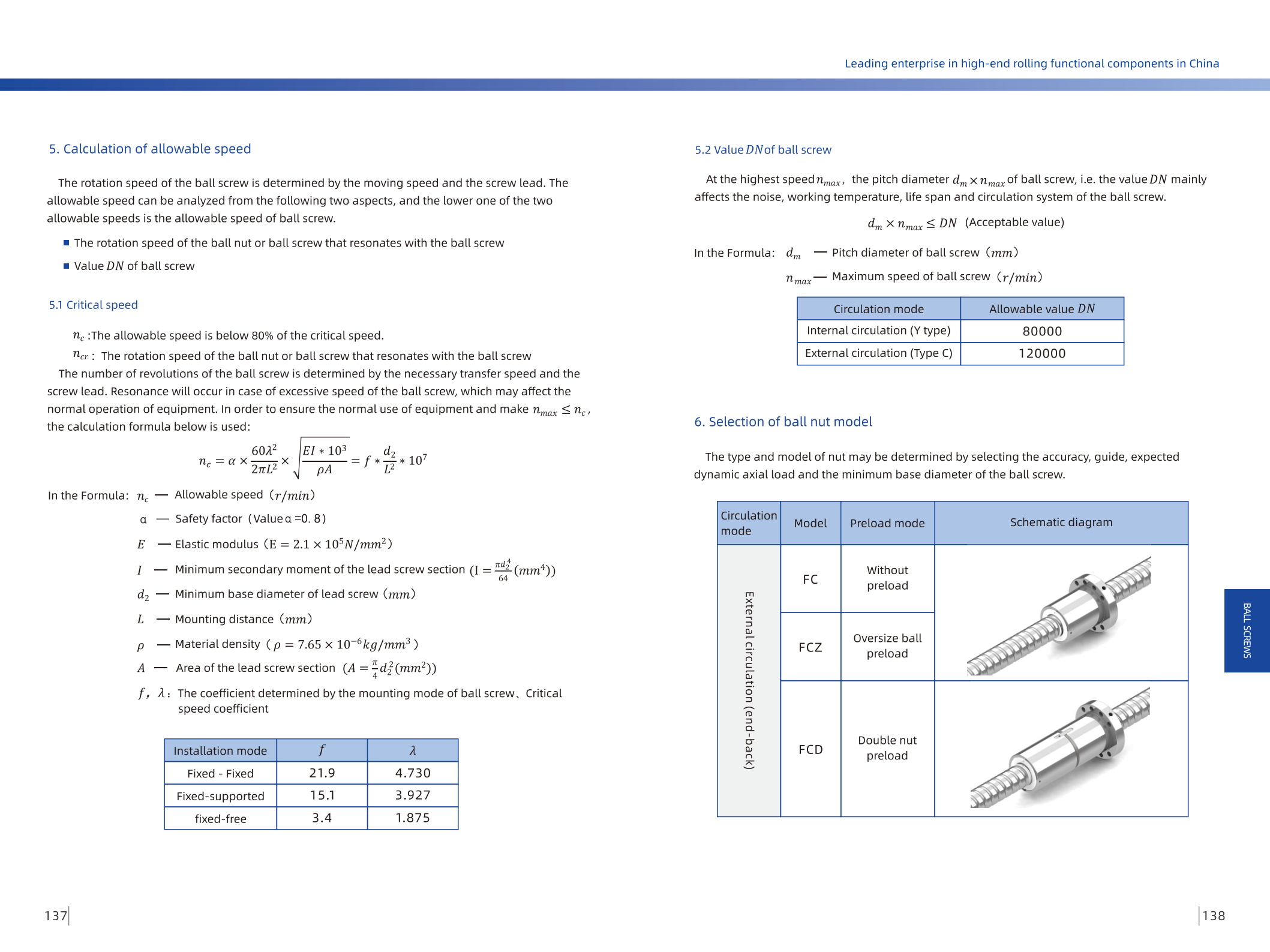

1. By recirculation method
External recirculation: Balls return via an external tube or deflector. Simple, cost‑effective, suitable for moderate speed/load.
Internal recirculation: Balls return through internal channels or end caps. More compact, higher rotational speed capability.
2. By nut design
Single nut: Standard design with possible backlash.

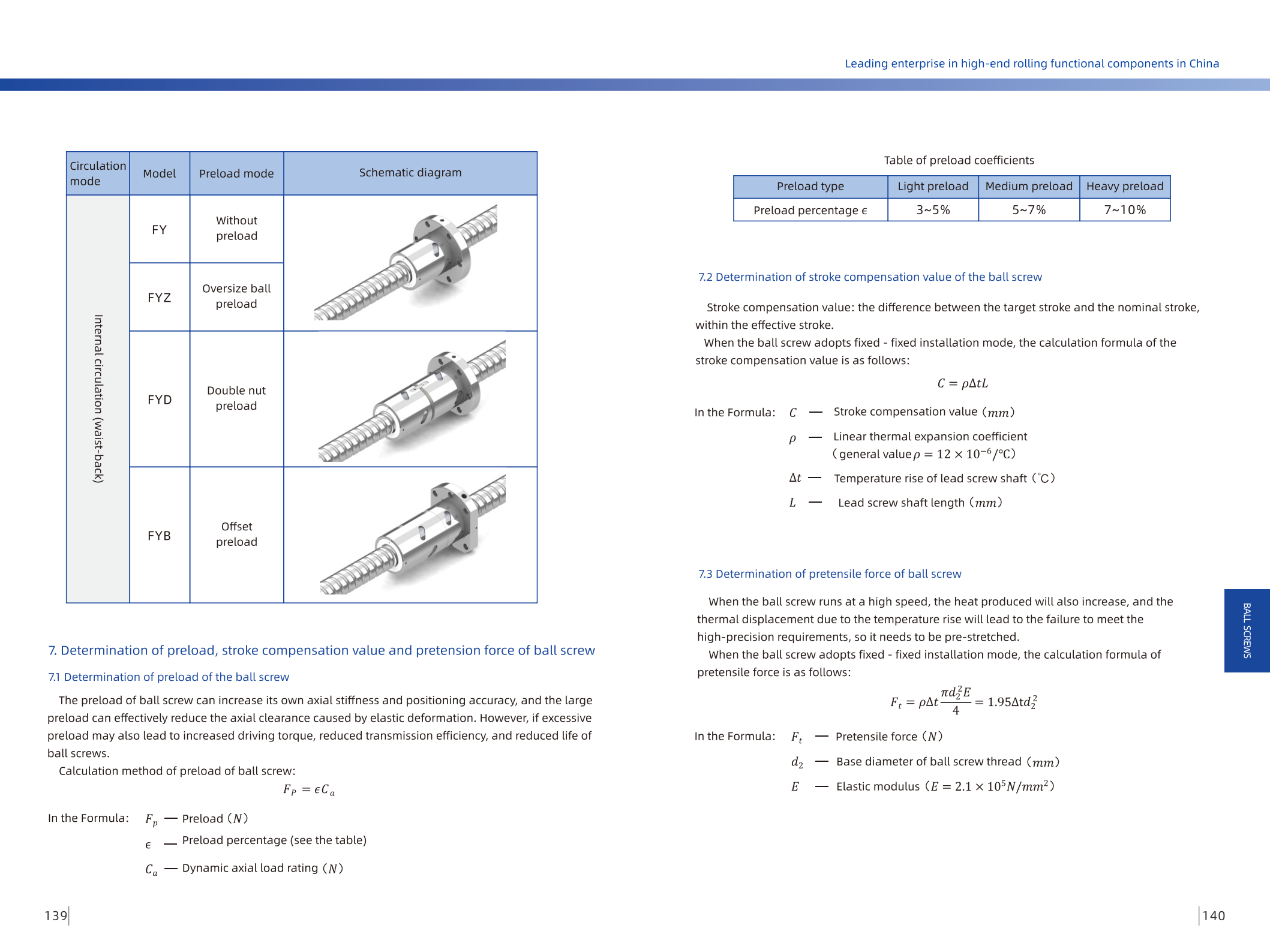

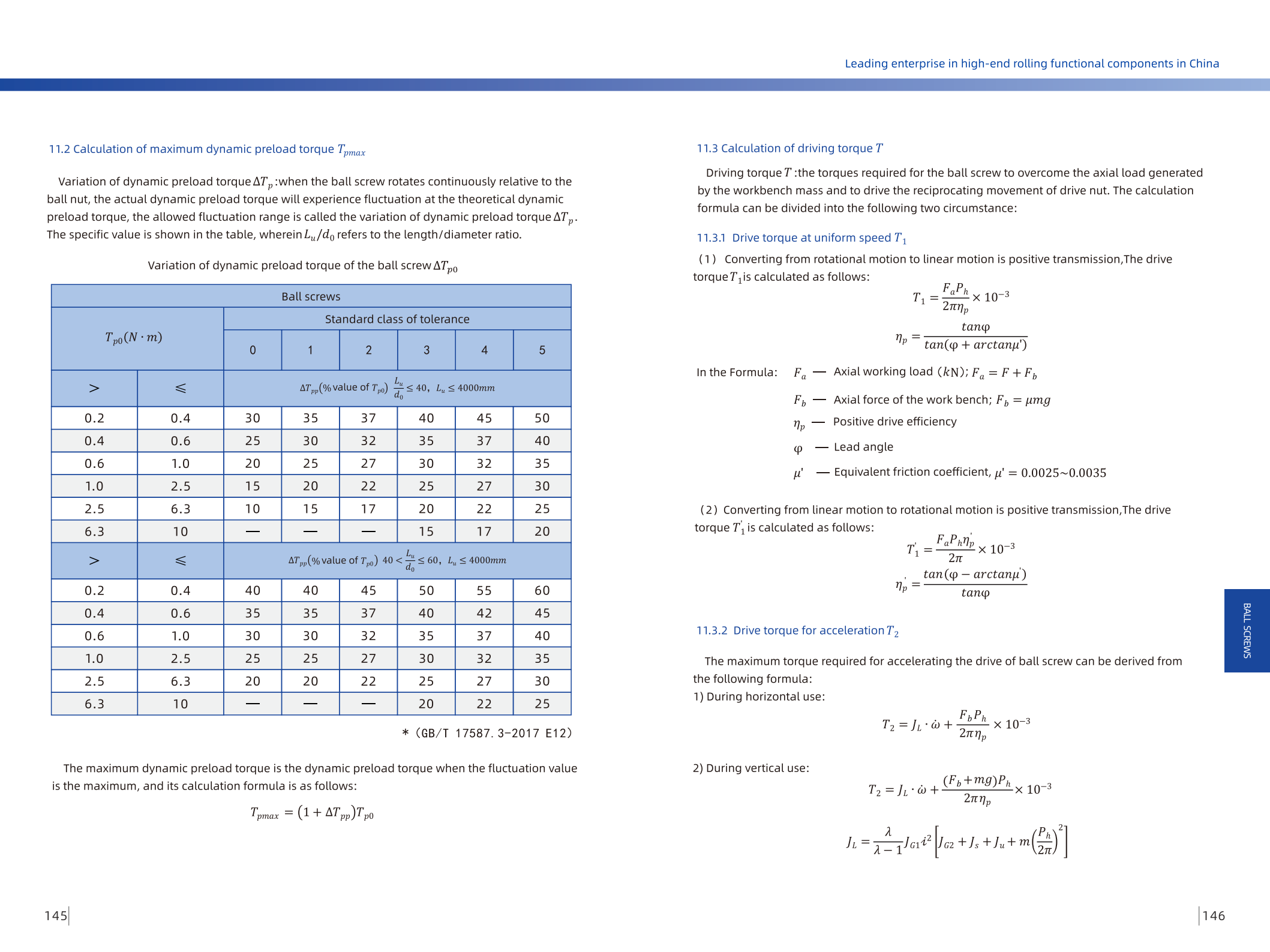

Double nut (preloaded): Two nuts with a preload spacer to eliminate backlash, used for high precision.
Flanged nut vs. cylindrical nut – depending on mounting needs.
3. By ground vs. rolled

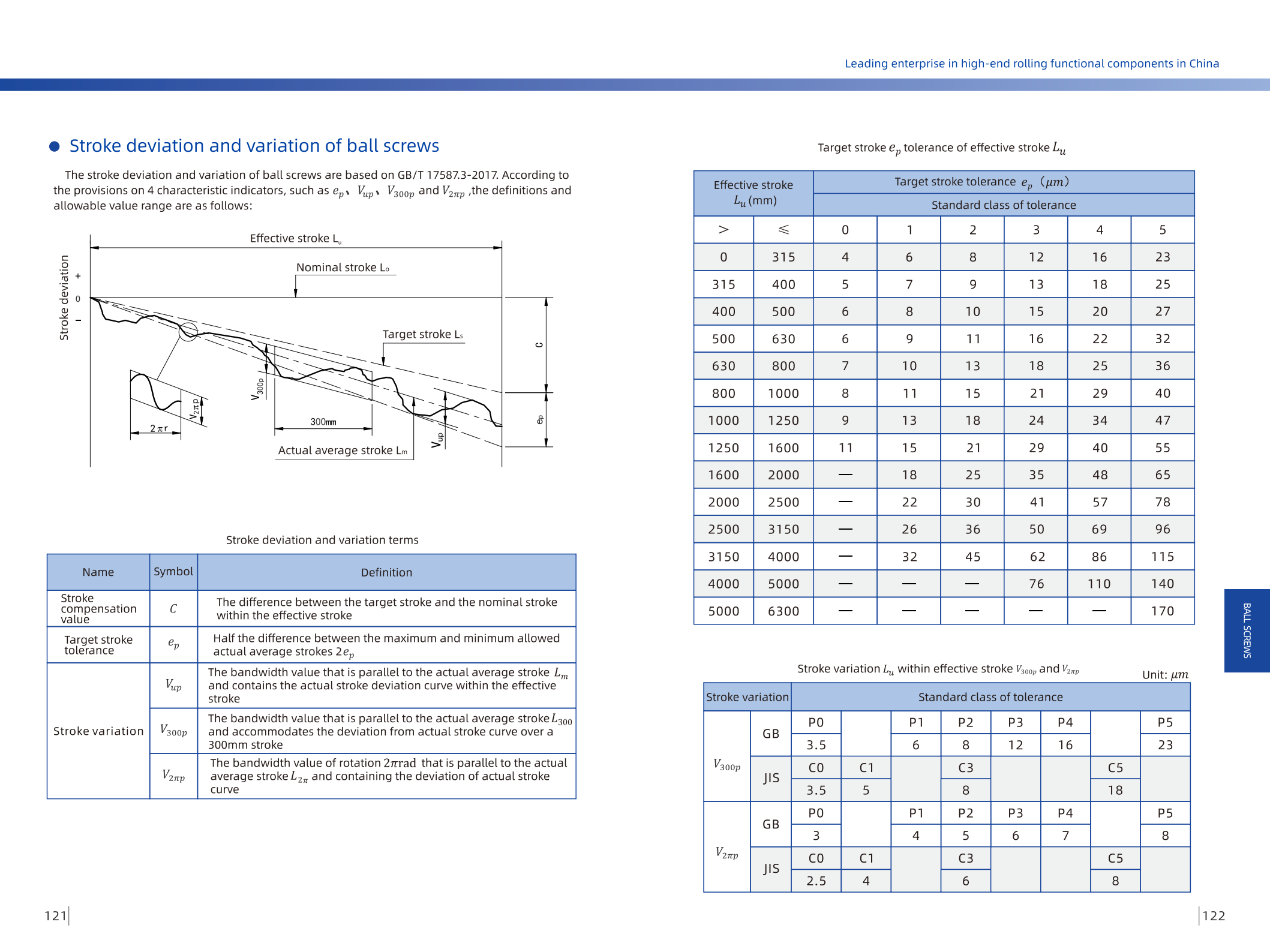

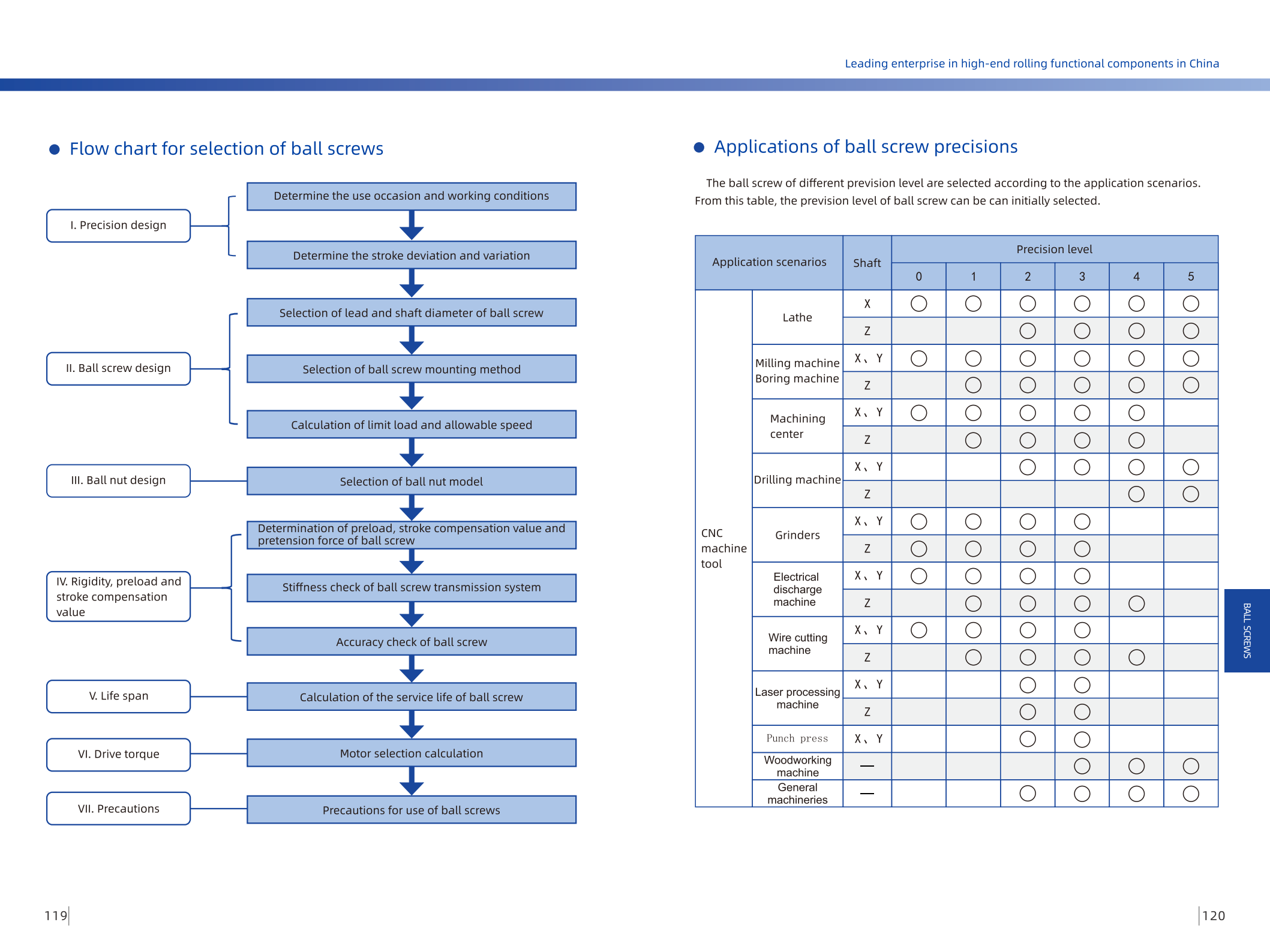

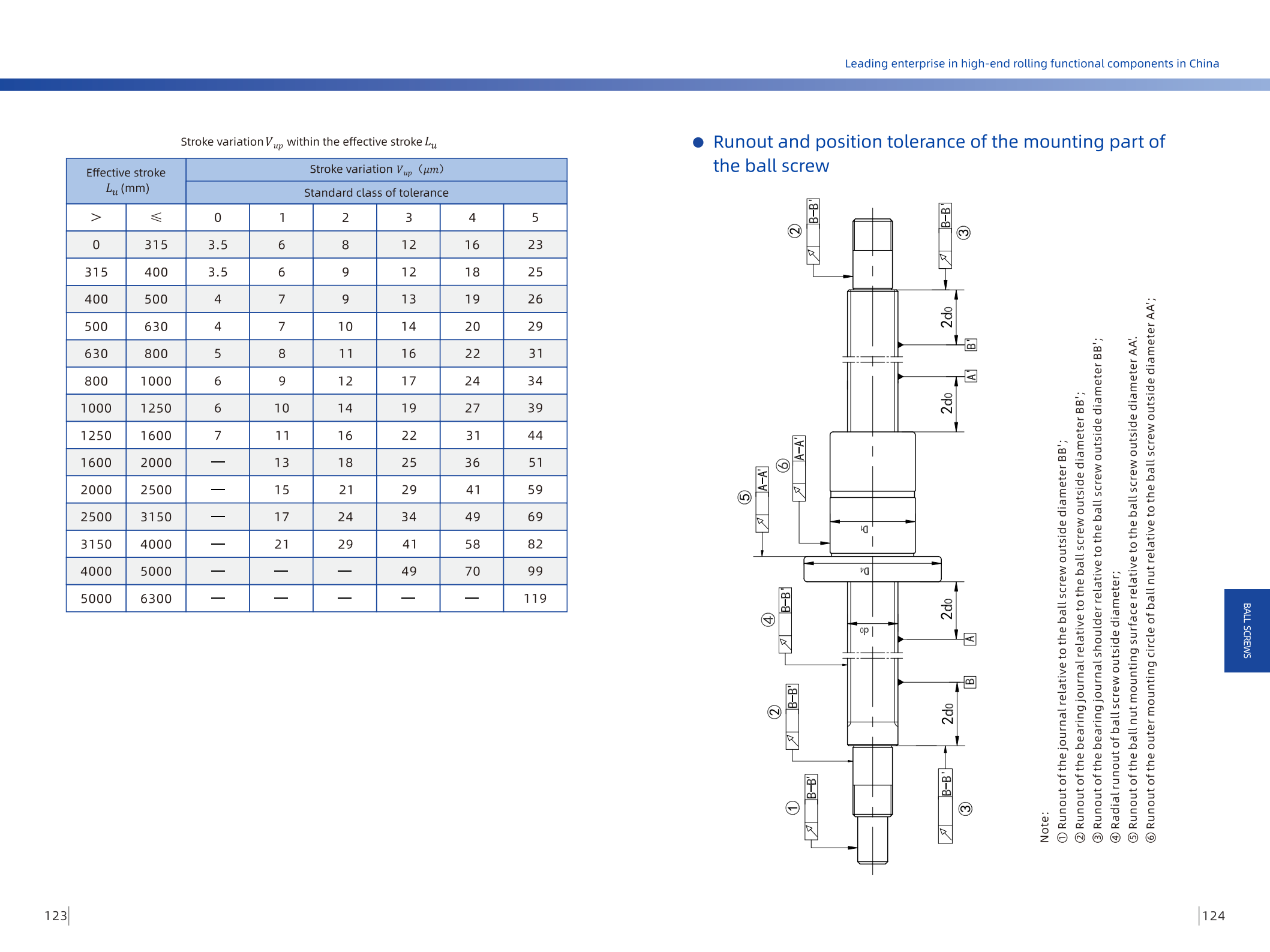

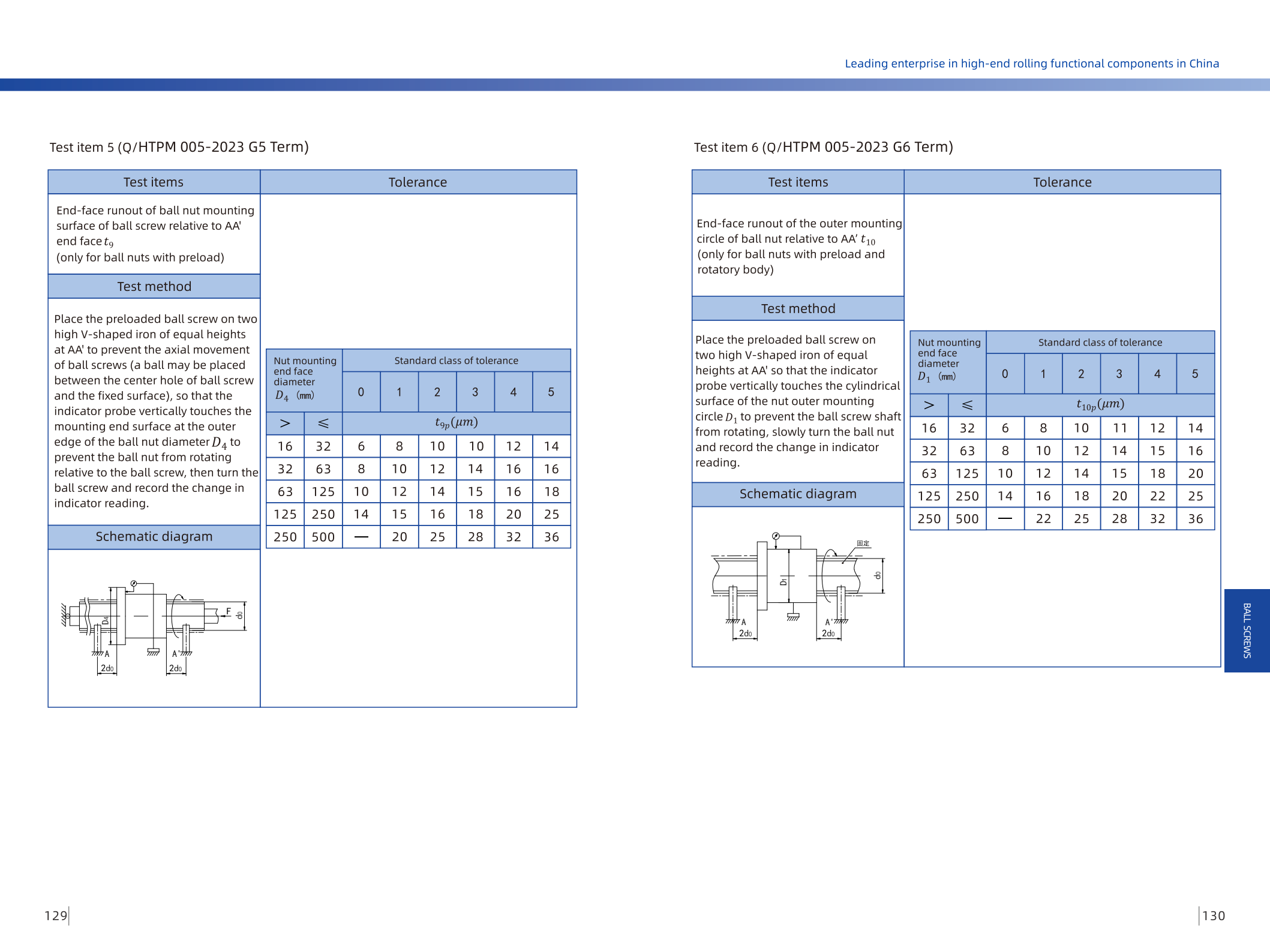

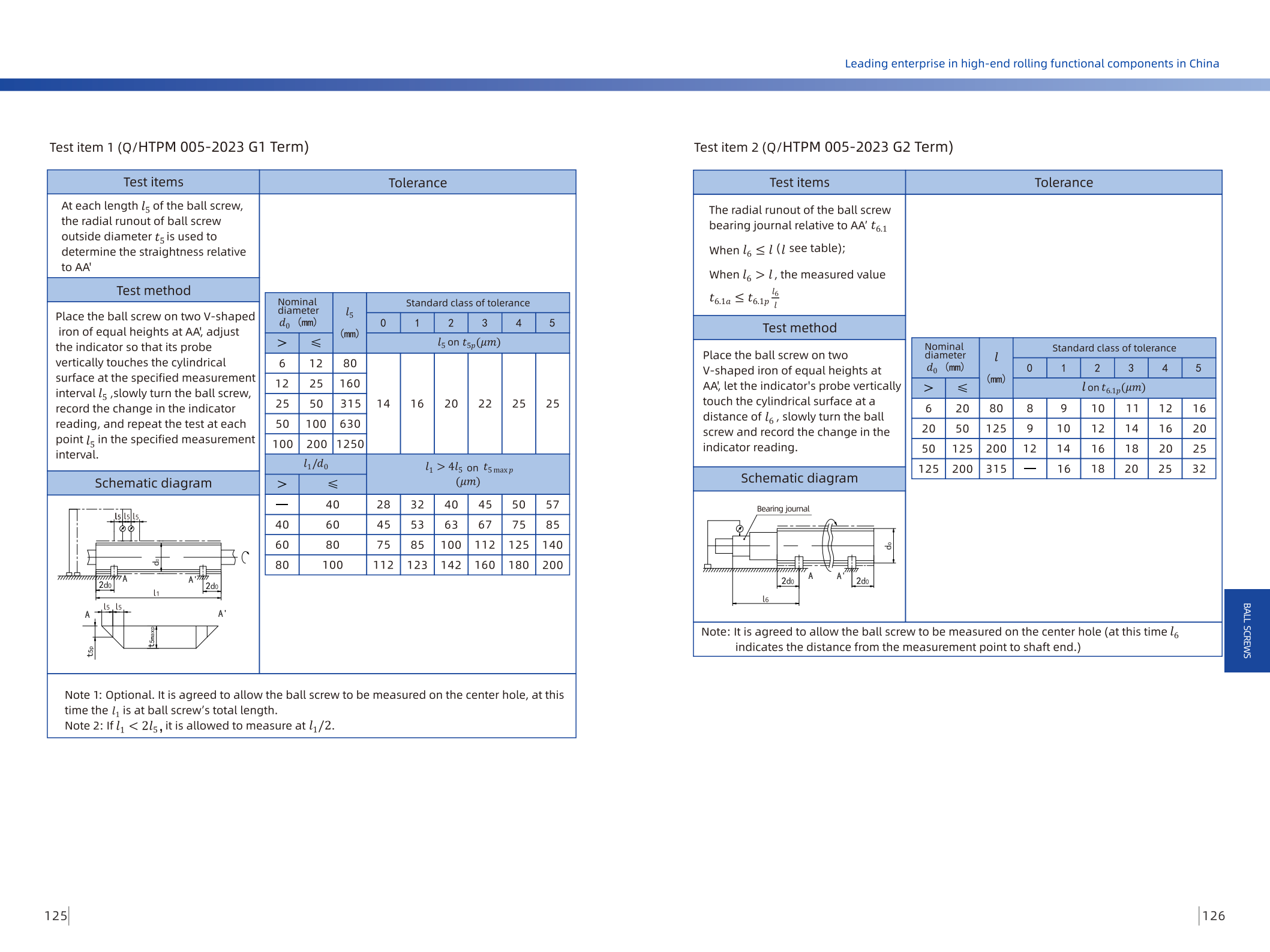

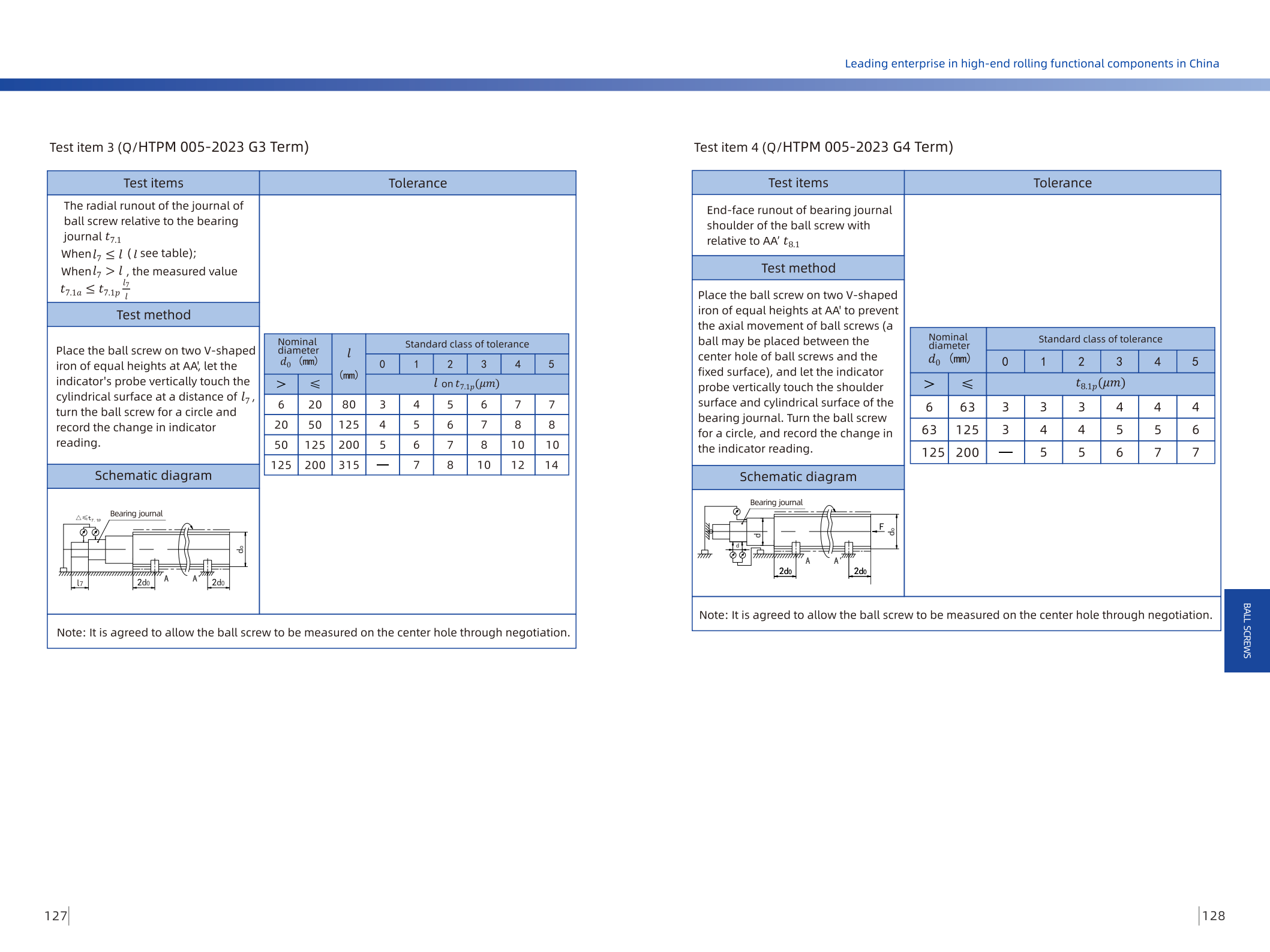

Ground ball screws: High precision (C0–C5 grades), expensive, used in machine tools.
Rolled ball screws: Lower precision (C7–C10), cost‑effective, good for general automation.

Main Application Areas

Ball screws are widely used wherever precise linear motion is required:

• CNC machine tools – Milling, lathe, grinding, EDM (axes drives).

• Industrial robots – Robotic arms, linear modules.

• Semiconductor manufacturing – Wafer handling, precision positioning stages.

• Aerospace & defense – Flight control actuators, landing gear mechanisms.

• Medical equipment – CT scanners, surgical robots, hospital beds.

• Automotive – Electric power steering (EPS), brake actuators.

• Printing & packaging machinery – High-speed reciprocating motions.

• Electric cylinders & linear actuators – Replacing hydraulic/pneumatic systems.
