Home > Products > Electric spindle > Grinding spindle > External grinding spindle > External grinding spindle 150ZD20G3.7
  • External grinding spindle 150ZD20G3.7:Rotation seed,20000RPM Power,3.7Kw Torque,4.5Nm Voltage,350V Frequency,667Hz Current,18A Lubrication Grease Cooling method Water
  • External grinding spindle 150ZD20G3.7:Rotation seed,20000RPM Power,3.7Kw Torque,4.5Nm Voltage,350V Frequency,667Hz Current,18A Lubrication Grease Cooling method Water
  • External grinding spindle 150ZD20G3.7:Rotation seed,20000RPM Power,3.7Kw Torque,4.5Nm Voltage,350V Frequency,667Hz Current,18A Lubrication Grease Cooling method Water
  • External grinding spindle 150ZD20G3.7:Rotation seed,20000RPM Power,3.7Kw Torque,4.5Nm Voltage,350V Frequency,667Hz Current,18A Lubrication Grease Cooling method Water

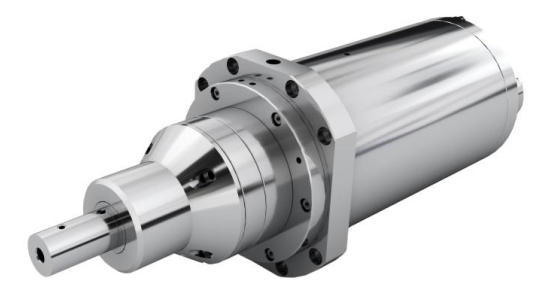

External grinding spindle 150ZD20G3.7:Rotation seed,20000RPM Power,3.7Kw Torque,4.5Nm Voltage,350V Frequency,667Hz Current,18A Lubrication Grease Cooling method Water

This type of spindle has a rotation speed of 20000RPM,Power of 3.7kW,Torque of 4.5Nm,can be used on External grinding machine tools with good stability.
Rotation seed
20000RPM
Power
3.7Kw
Torque
4.5Nm
Voltage
350V
Frequency
667Hz
Current
18A
Lubrication
Grease
Cooling method
Water
GET A QUOTE
  • External grinding spindle 150ZD20G3.7:Rotation seed,20000RPM Power,3.7Kw Torque,4.5Nm Voltage,350V Frequency,667Hz Current,18A Lubrication Grease Cooling method Water
  • External grinding spindle 150ZD20G3.7:Rotation seed,20000RPM Power,3.7Kw Torque,4.5Nm Voltage,350V Frequency,667Hz Current,18A Lubrication Grease Cooling method Water

Description

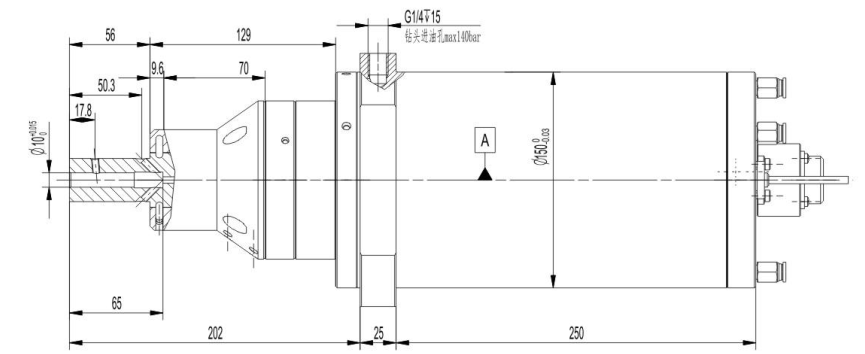

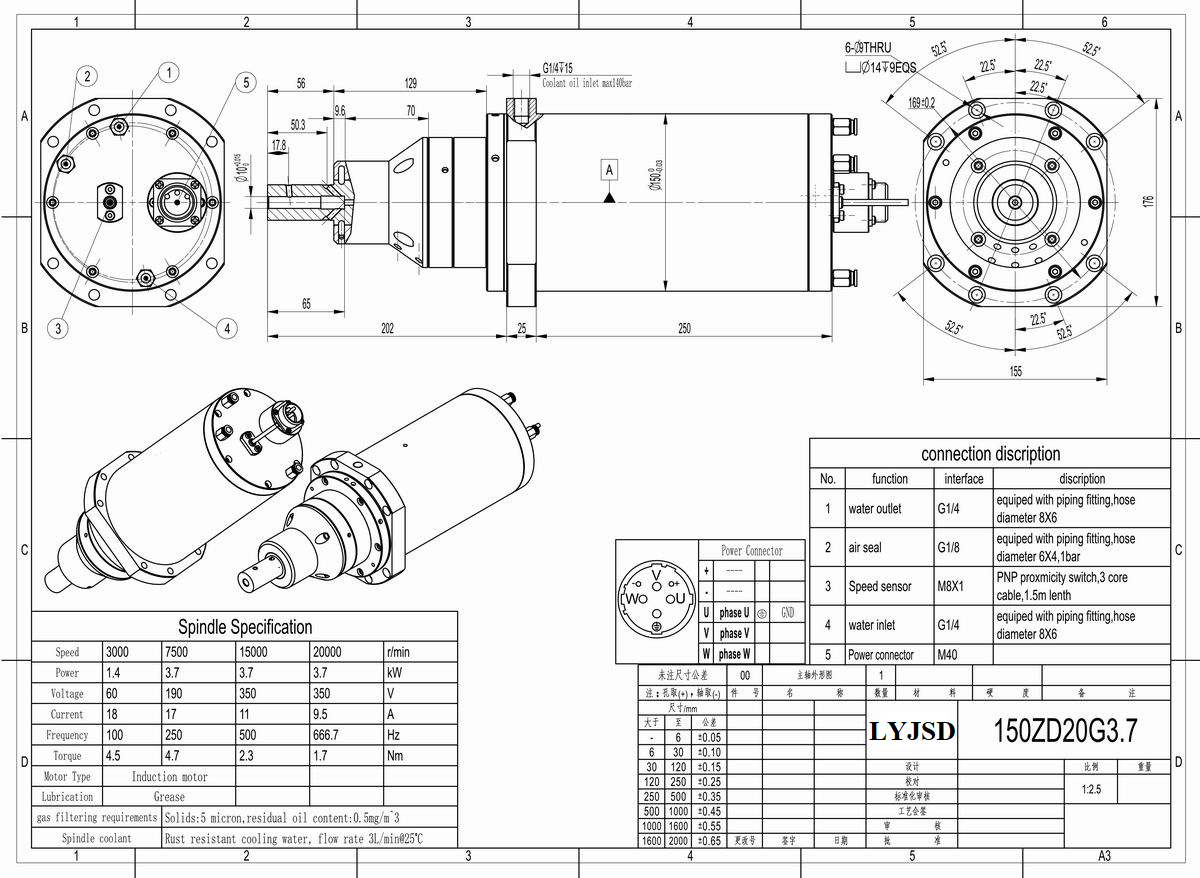

If you need more detailed parameters please find them as below:

Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
