Home > Products > Electric spindle > Milling spindle > 120XDJ24G12
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ

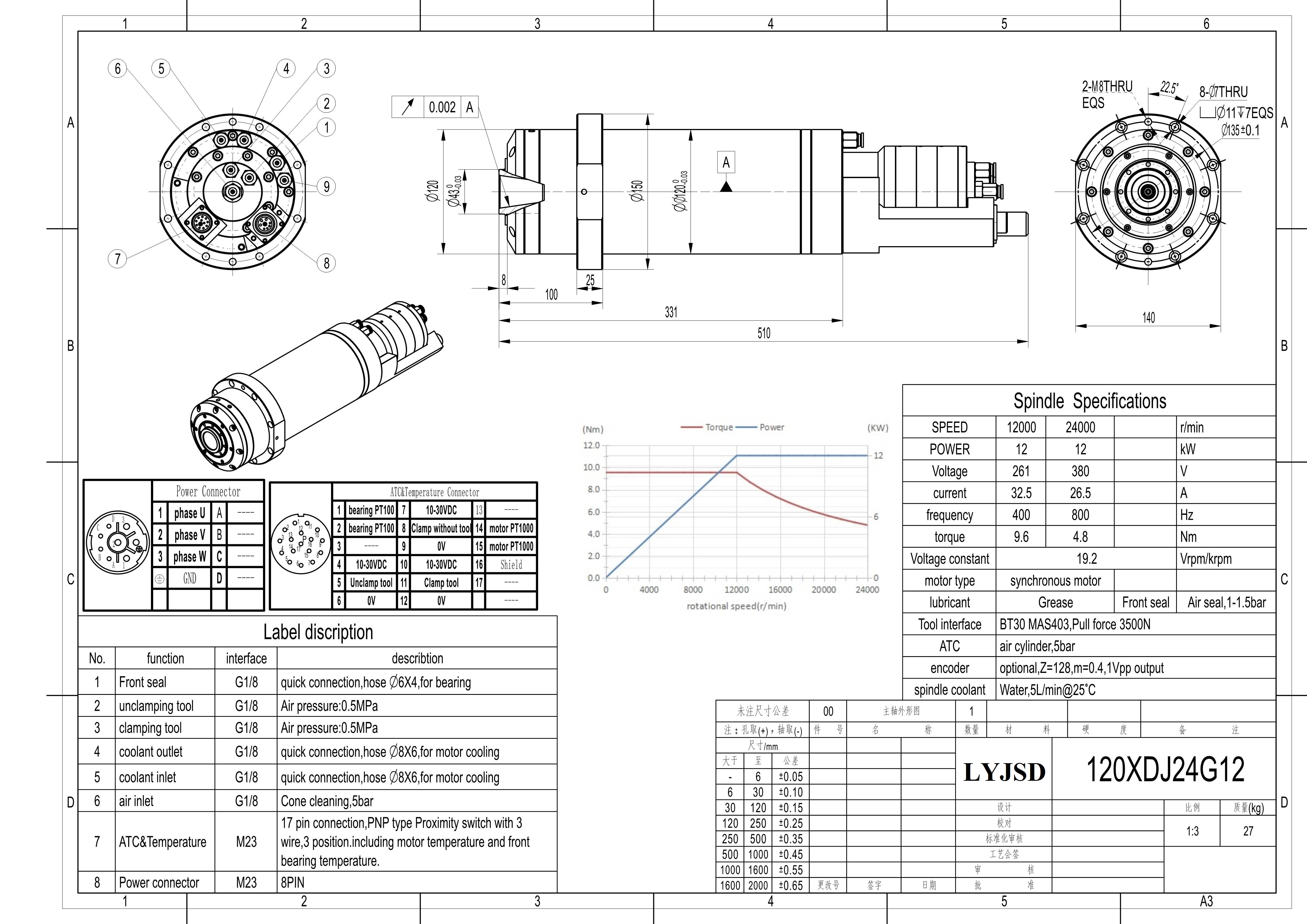

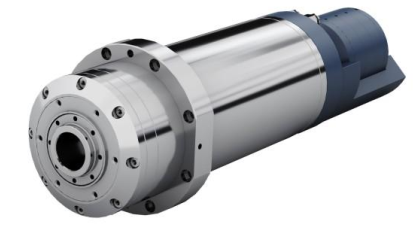

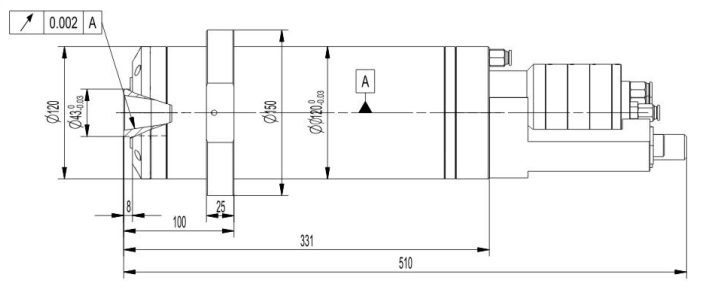

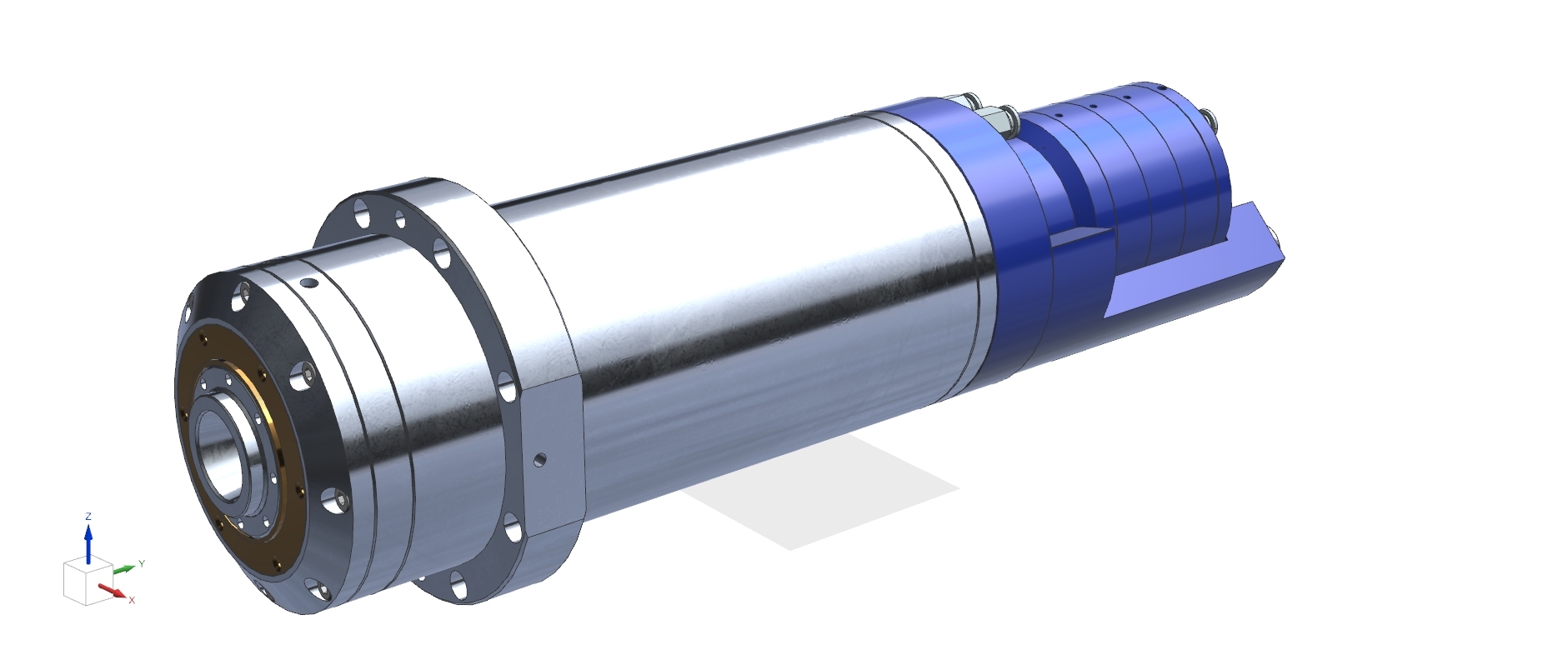

Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ

This type of milling spindle has the rotation speed of 24000RPM, power of 12kW andTorque of 9.6Nm.
Luoyang Songju Science and Technology Co., Ltd. specializes in technological R&D, Manufacture for high precision milling spindles.Our products can cover most operation situation,please find the model you need and send inquiry to us!
Rotation speed
12000-24000RPM
Rated Power
S1:Constant power 10KW
Rated torque
S1:4NM-8NM;
Voltage
380V
Frequency
400HZ
Rated currency
17A
Electric Motor type
Three-phase permanent magnet synchronous motor
GET A QUOTE
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ
  • Milling spindle 120XDJ24G12:Rotation speed,12000-24000RPM Rated Power,S1:Constant power 10KW Rated torque,S1:4NM-8NM Voltage,380V Frequency,400HZ

Description

Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
