100MD60Y4

Motor Specifications

Model: 100MD60Y4

Motor Parameters

• Maximum Speed (r/min): 60,000
• Rated Power (S1, kW): 2.5
• Power (S6-60%, kW): 4
• Rated Torque (S1, Nm): 0.4
• Torque (S6-60%, Nm): 0.6
• Rated Voltage (V): 350
• Rated Frequency (Hz): 1,000
• Rated Current (A): 6.3
• Maximum Current (A): 10
• Motor Type: Three-phase asynchronous motor
• Motor Temperature Detection: Optional
• Front Bearing: 2-B7003
• Rear Bearing: 2-B7003

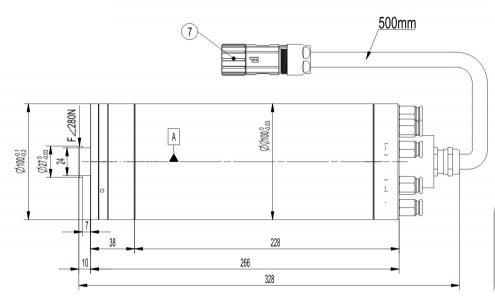

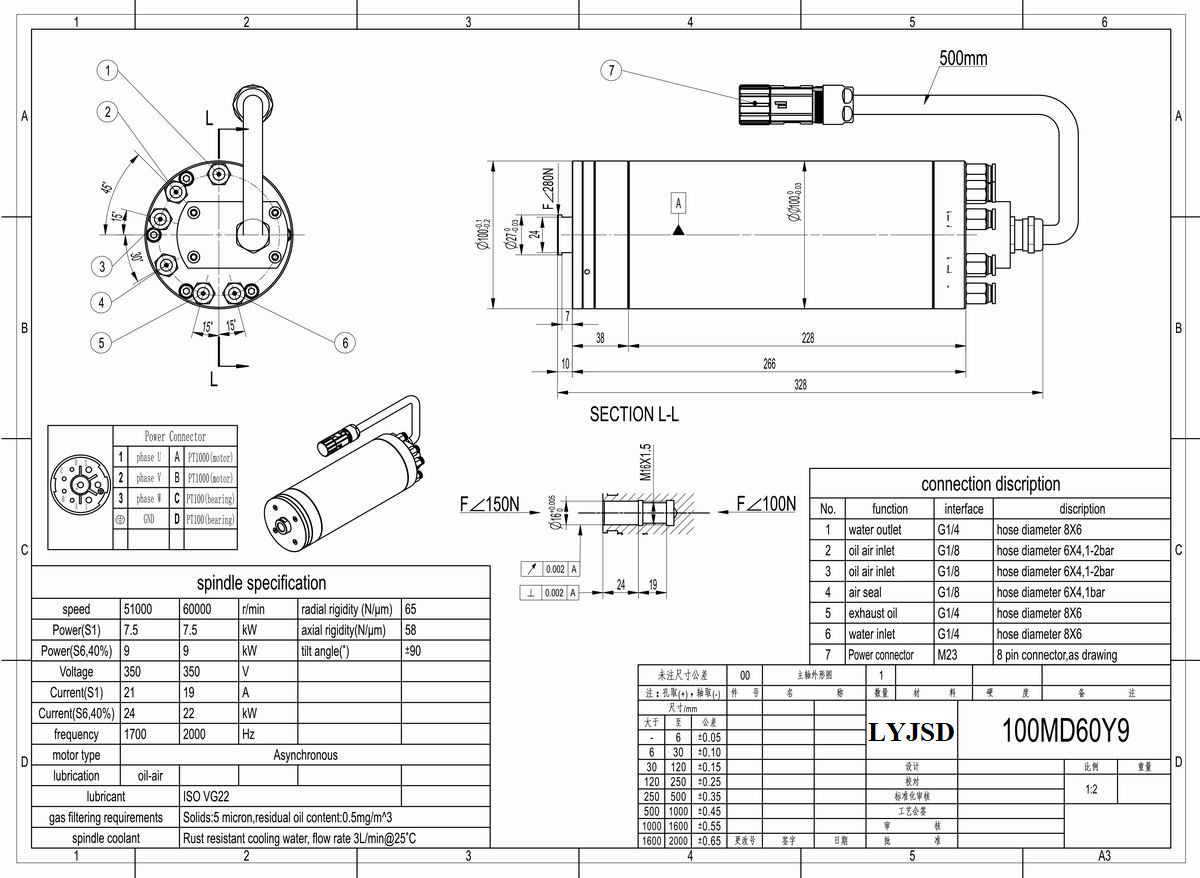

Structural Data

• D (mm): 100
• L (mm): 185
• D1 (mm): 66
• L1 (mm): 24
• D2 (mm): 16
• L2 (mm): 8
• d (mm): 8
• Lh (mm): 13
• M (mm): M8×1
• lt (mm): 15
• t (mm): 14
• SW (mm): 14
• W (mm): 12

Other Specifications

• Lubrication Method: Oil mist
• Spindle Cooling Method: Water cooling
• Power Connector: 5-pin connector (Pins 1–3 for power)
