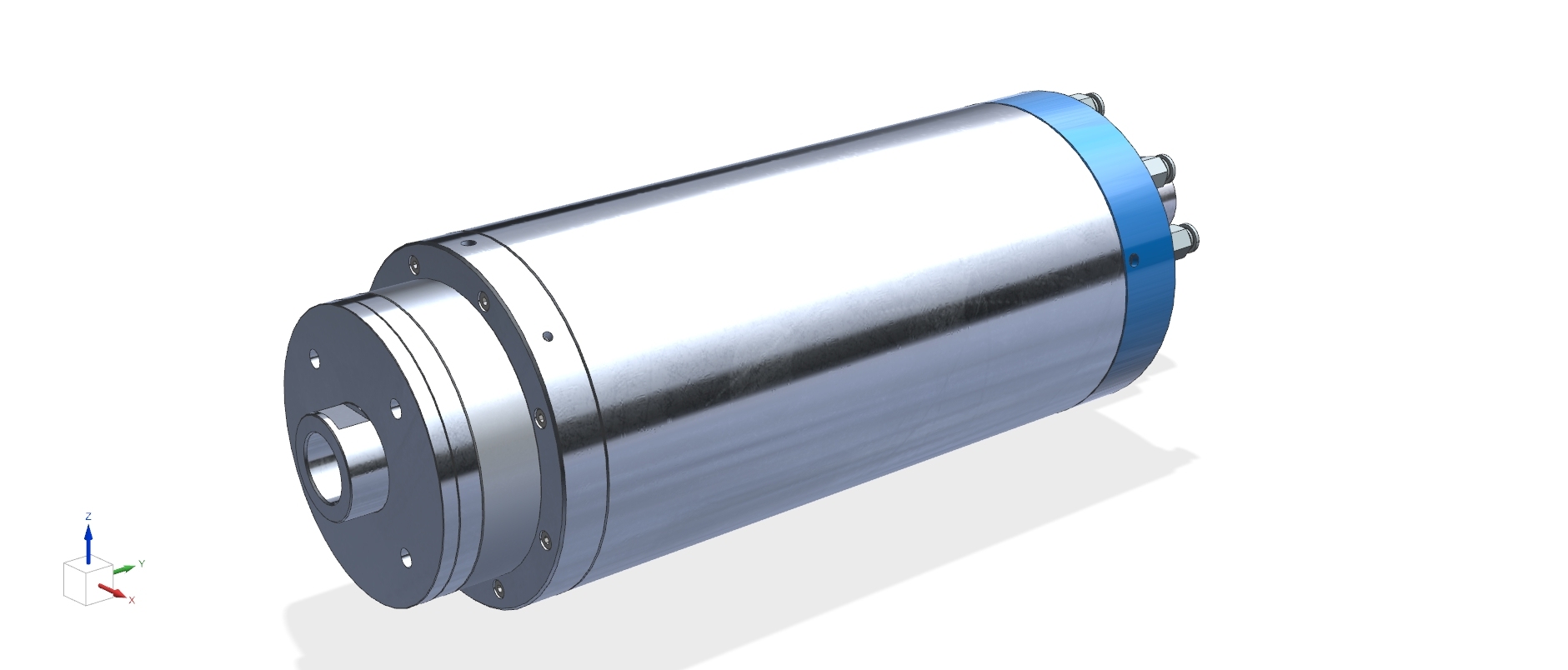

170MD18Y16

No.13
Our grinding electric spindle has the characteristics of high precision, high speed, low noise, low temperature rise and high reliability！
Voltage
350V
Frequency
600HZ
Rated Torque
S1:5.3NM S6:8.5NM
Rotation speed
18000RPM
Rated Power
S1:10KW S6:16KW
GET A QUOTE
  • 170MD18Y16

Description


Spindle Specifications

170MD18Y16

  • Maximum Speed (r/min):18000
  • Rated Power (S1, kW):10
  • Power (S6-60%, kW):16
  • Rated Torque (S1, Nm):3
  • Torque (S6-60%, Nm):5
  • Rated Voltage (V):350
  • Rated Frequency (Hz):600
  • Rated Current (A):21
  • Maximum Current (A):35
  • Motor Type:Three-phase Asynchronous Motor
  • Motor Temperature Monitoring:Optional
  • Front Bearing:2-B7009
  • Rear Bearing:2-B7008
  • Dimensions (mm):
    • D: 170
    • L: 305
    • D1: 110
    • L1: 36
    • D2: 42
    • L2: 22
    • Lh: 40
    • M: M25X2
    • 1t: 24
    • SW: 46
    • W: 14
  • Lubrication:Oil Mist
  • Cooling Method:Water Cooling
  • Power Connector:5-pin connector, Pins 1-3 for power
