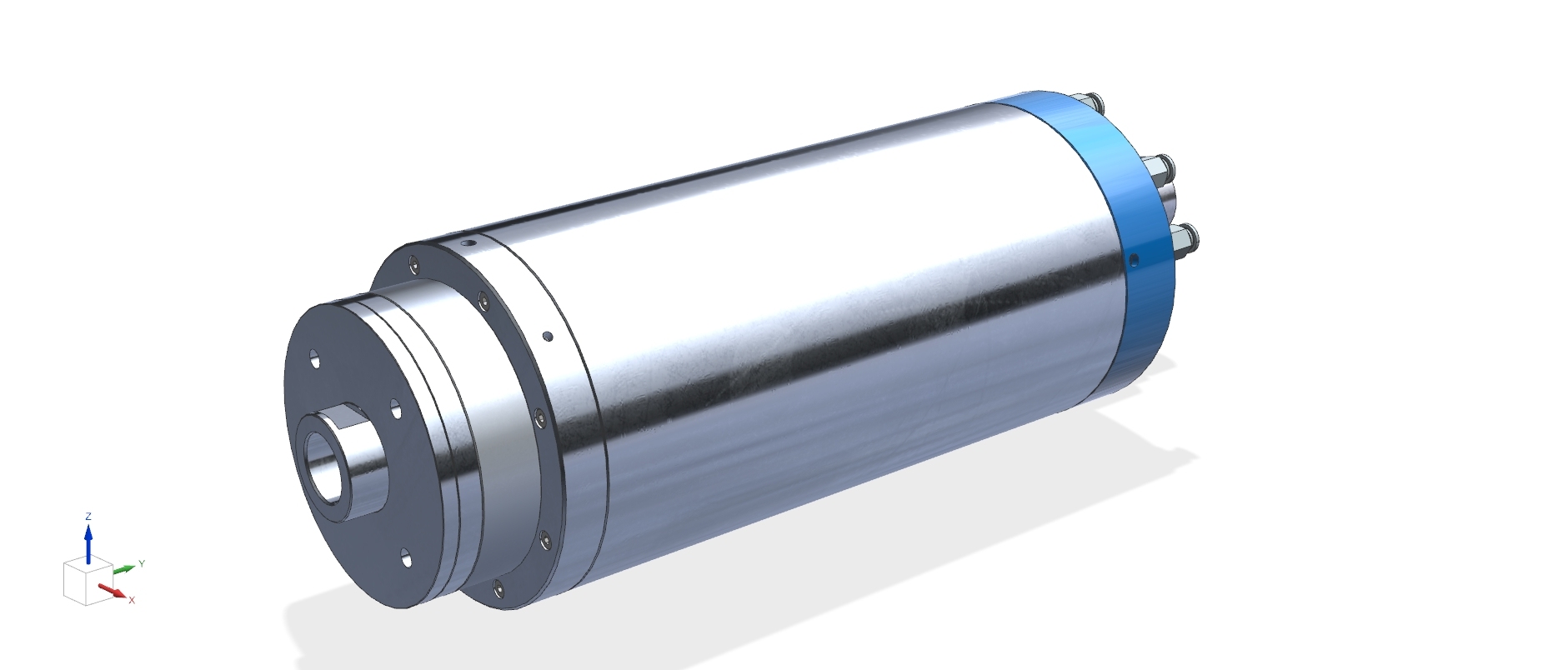

170MD15Y20

No.12
Our grinding electric spindle has the characteristics of high precision, high speed, low noise, low temperature rise and high reliability！
Voltage
350V
Frequency
500HZ
Rated Torque
S1:8.0NM S6:12.7NM
Rotation speed
15000RPM
Rated Power
S1:12.5KW S6:20.0KW
GET A QUOTE
  • 170MD15Y20

Description


Spindle Specifications

170MD15Y20

  • Maximum Speed (r/min):15000
  • Rated Power (S1, kW):5
  • Power (S6-60%, kW):20
  • Rated Torque (S1, Nm):0
  • Torque (S6-60%, Nm):7
  • Rated Voltage (V):350
  • Rated Frequency (Hz):500
  • Rated Current (A):8
  • Maximum Current (A):3
  • Motor Type:Three-phase Asynchronous Motor
  • Motor Temperature Monitoring:Optional
  • Front Bearing:2-B7011
  • Rear Bearing:2-B7009
  • Dimensions (mm):
    • D: 170
    • L: 320
    • D1: 116
    • L1: 38
    • D2: 44
    • L2: 17
    • Lh: 32
    • M: M32X2
    • 1t: 25
    • SW: 46
    • W: 13
  • Lubrication:Oil Mist
  • Cooling Method:Water Cooling
  • Power Connector:5-pin connector, Pins 1-3 for power
