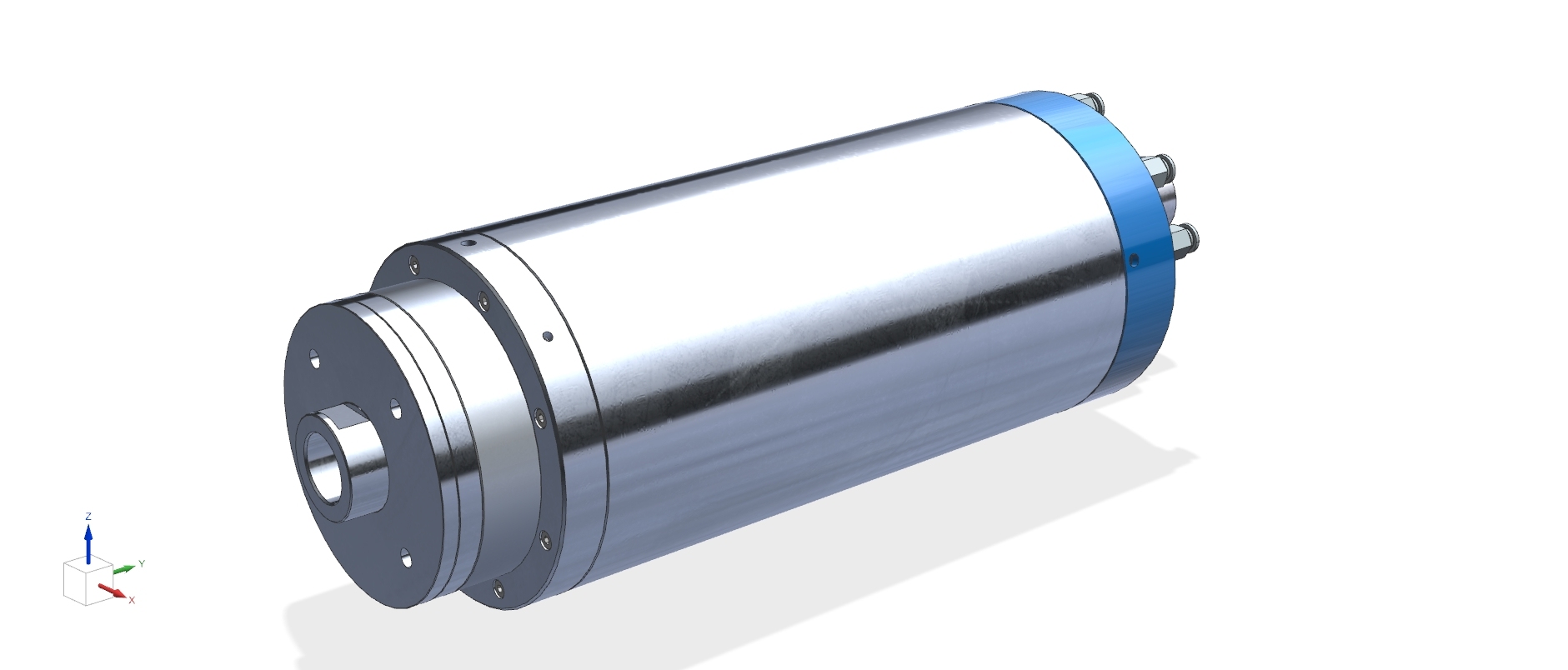

170MD12Y20

No.11
Our grinding electric spindle has the characteristics of high precision, high speed, low noise, low temperature rise and high reliability！
Voltage
350V
Frequency
400HZ
Rated Torque
S1:9.9NM S6:15.9NM
Rotation speed
12000RPM
Rated Power
S1:12.5KW S6:20.0KW
GET A QUOTE
  • 170MD12Y20

Description


Spindle Specifications

170MD12Y20

  • Maximum Speed (r/min):12000
  • Rated Power (S1, kW):5
  • Power (S6-60%, kW):20
  • Rated Torque (S1, Nm):9
  • Torque (S6-60%, Nm):9
  • Rated Voltage (V):350
  • Rated Frequency (Hz):400
  • Rated Current (A):25
  • Maximum Current (A):5
  • Motor Type:Three-phase Asynchronous Motor
  • Motor Temperature Monitoring:Optional
  • Front Bearing:2-B7011
  • Rear Bearing:2-B7009
  • Dimensions (mm):
    • D: 170
    • L: 370
    • D1: 124
    • L1: 40
    • D2: 50
    • L2: 22
    • Lh: 36
    • M: M33X2
    • 1t: 30
    • SW: 50
    • W: 12
  • Lubrication:Oil Mist
  • Cooling Method:Water Cooling
  • Power Connector:5-pin connector, Pins 1-3 for power
