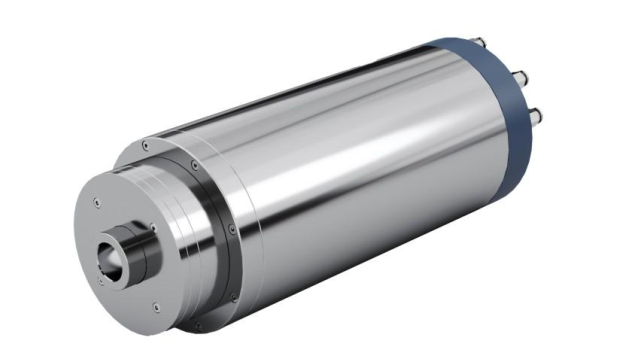

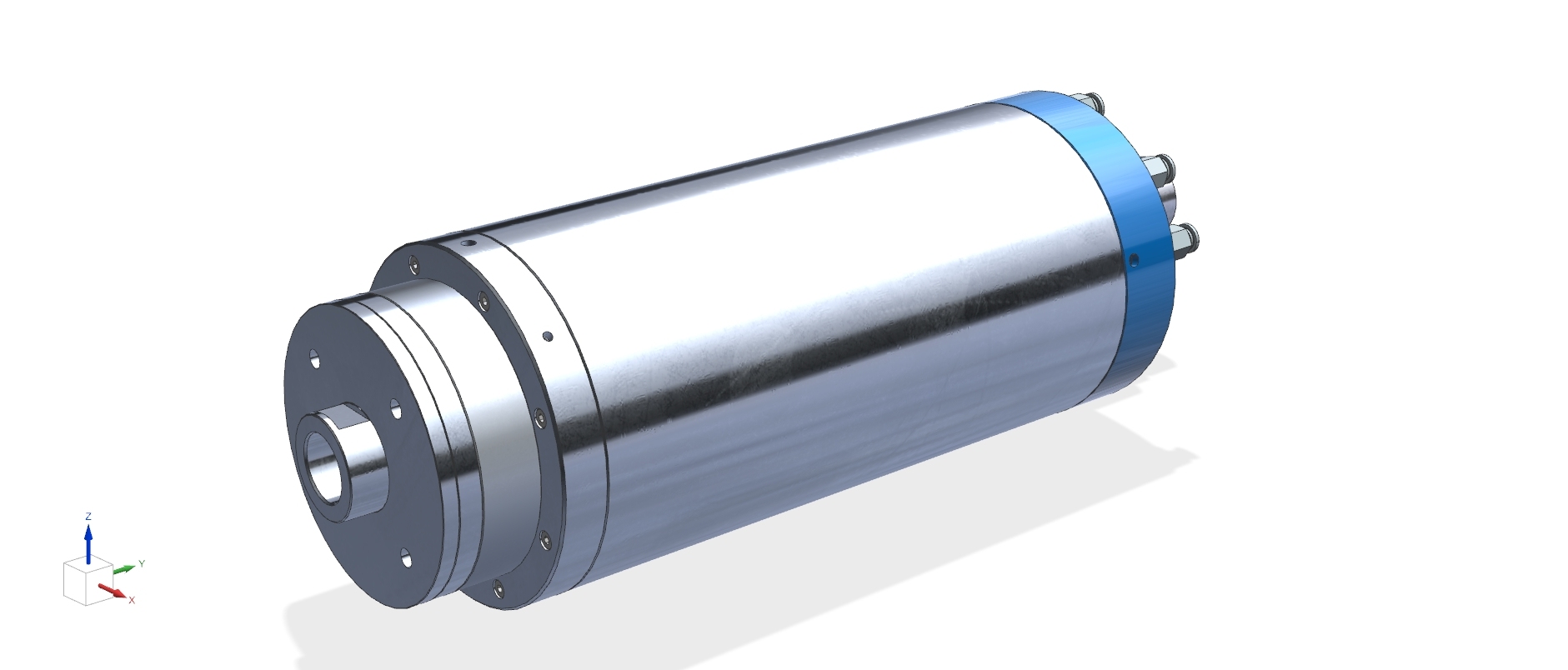

150MD24Y12.5

No.8
Our grinding electric spindle has the characteristics of high precision, high speed, low noise, low temperature rise and high reliability！
Voltage
350V
Frequency
400HZ
Rated Torque
S1:3.1NM S6:5.0NM
Rotation speed
24000RPM
Rated Power
S1:7.8KW S6:12.5KW
Cooling method
Water cooling
GET A QUOTE
  • 150MD24Y12.5

Description


Spindle Specifications

150MD24Y12.5

  • Maximum Speed: 24000 r/min
  • Rated Power (S1): 7.8 kW
  • Power (S6-60%): 12.5 kW
  • Rated Torque (S1): 3.1 Nm
  • Torque (S6-60%): 5.0 Nm
  • Rated Voltage: 350 V
  • Rated Frequency: 400 Hz
  • Rated Current: 16.0 A
  • Maximum Current: 26.7 A
  • Motor Type: 3-phase asynchronous motor
  • Motor Temperature Detection: Optional
  • Front Bearing: 2-B7008
  • Rear Bearing: 2-B7007
  • Dimensions (D): 150 mm
  • Dimensions (L): 310 mm
  • Dimensions (D1): 98 mm
  • Dimensions (L1): 32 mm
  • Dimensions (D2): 38 mm
  • Dimensions (L2): 19 mm
  • d (mm): 22 mm
  • Lh (mm): 38 mm
  • Thread Size (M): M22X2
  • Lubrication: Oil mist
  • Cooling Method: Water cooling
  • Power Connector: 5-pin connector, 1-3 pins for power
