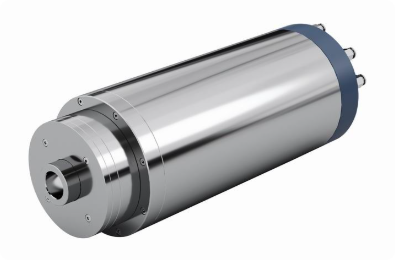

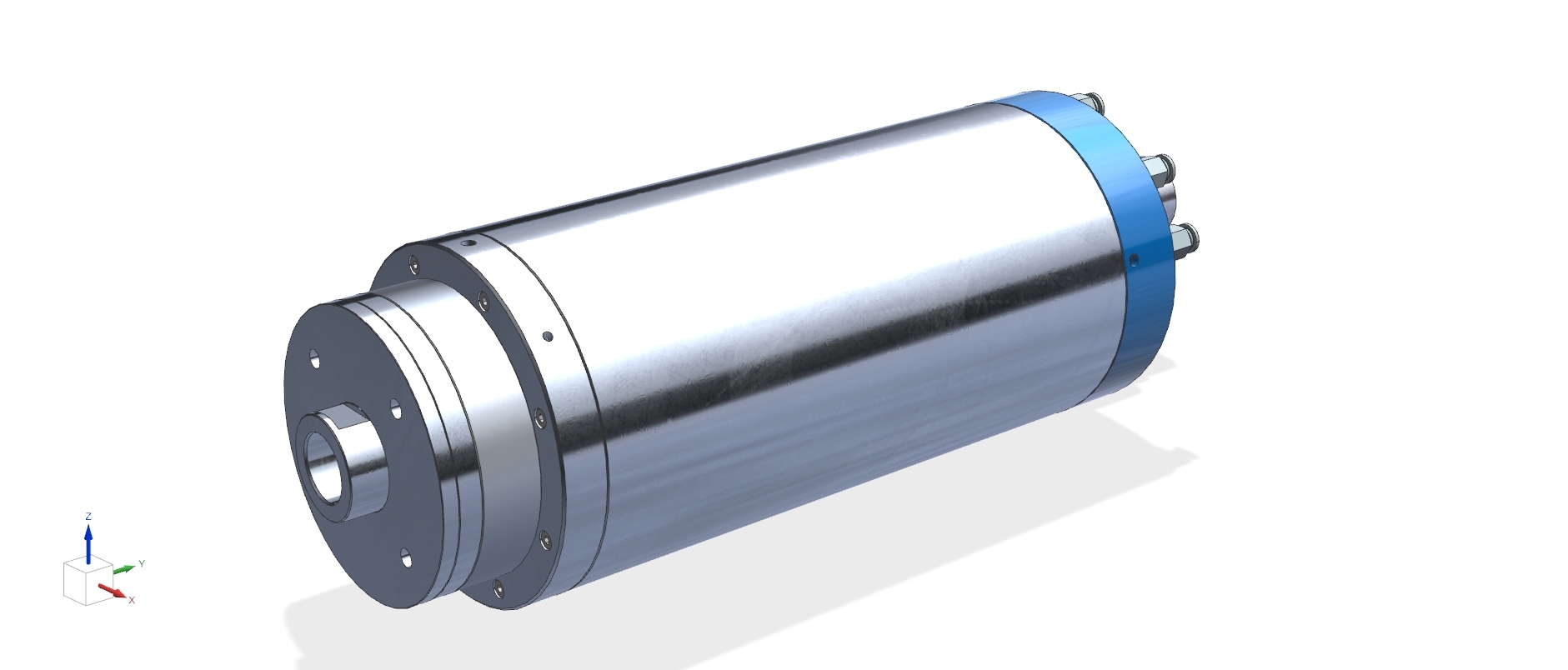

150MD18Y14.5

No.7
Our grinding electric spindle has the characteristics of high precision, high speed, low noise, low temperature rise and high reliability！
Voltage
350V
Frequency
600HZ
Rated Torque
S1:4.8NM S6:7.7NM
Rotation speed
18000RPM
Rated Power
S1:9KW S6:14.5KW
Cooling method
Water cooling
GET A QUOTE
  • 150MD18Y14.5

Description


Spindle Specifications

150MD18Y14.5

  • Maximum Speed: 18000 r/min
  • Rated Power (S1): 9 kW
  • Power (S6-60%): 14.5 kW
  • Rated Torque (S1): 4.8 Nm
  • Torque (S6-60%): 7.7 Nm
  • Rated Voltage: 350 V
  • Rated Frequency: 600 Hz
  • Rated Current: 23 A
  • Maximum Current: 38 A
  • Motor Type: 3-phase asynchronous motor
  • Motor Temperature Detection: Optional
  • Front Bearing: 2-B7009
  • Rear Bearing: 2-B7008
  • Dimensions (D): 150 mm
  • Dimensions (L): 327 mm
  • Dimensions (D1): 110 mm
  • Dimensions (L1): 38 mm
  • Dimensions (D2): 43 mm
  • Dimensions (L2): 22 mm
  • d (mm): 25 mm
  • Lh (mm): 40 mm
  • Thread Size (M): M25X2
  • Lubrication: Oil mist
  • Cooling Method: Water cooling
  • Power Connector: 5-pin connector, 1-3 pins for power
