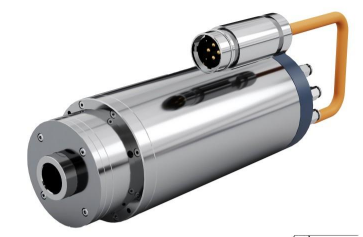

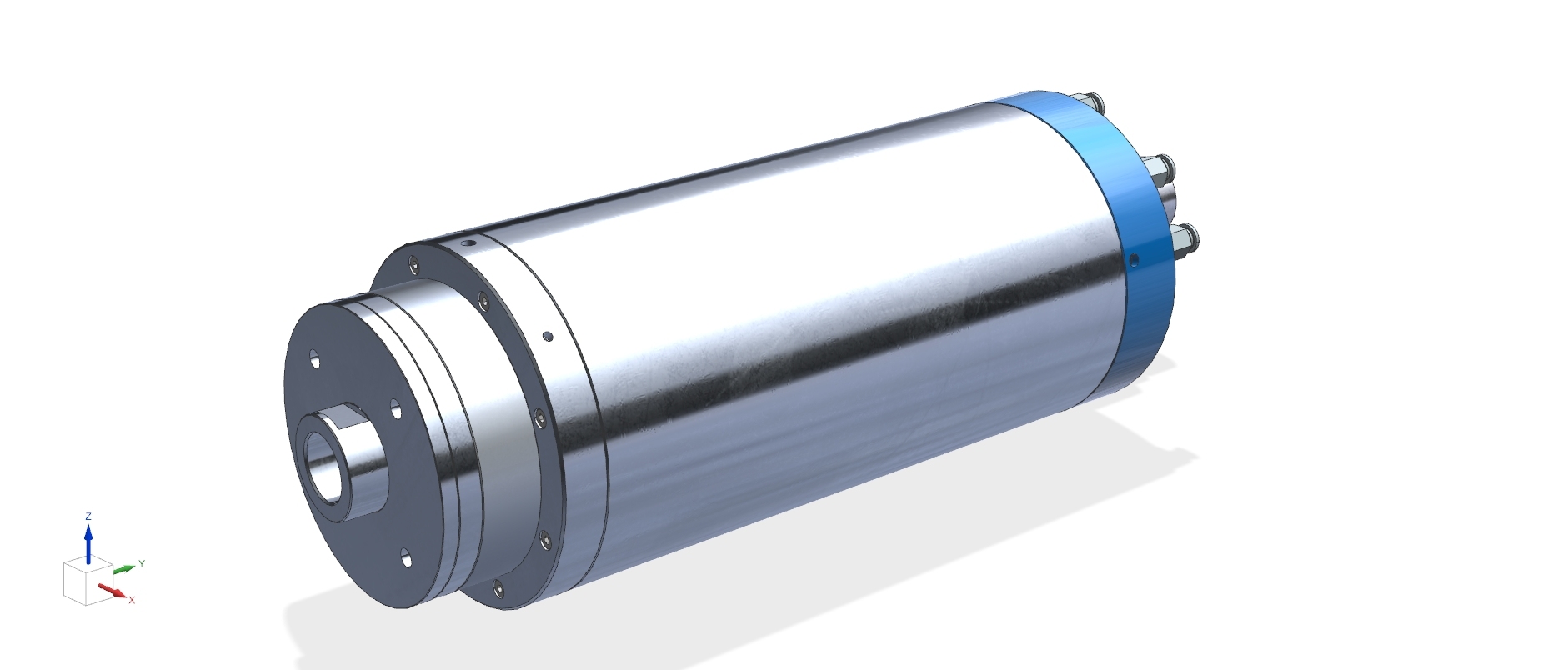

120MD36Y8.5

Name: 120MD36Y8.5
Brand: LUOYANG SONGJU SCIENCE AND TECHNOLOGY CO.,LTD
SKU: 5
Availability: InStock
Rating: 5 (1 reviews)

No.5

Our grinding electric spindle has the characteristics of high precision, high speed, low noise, low temperature rise and high reliability！

Voltage

350V

Frequency

600HZ

Rated Torque

S1:1.4NM S6:2.3NM

Rotation speed

36000RPM

Rated Power

S1:5.3KW S6:8.5KW

Cooling method

Water cooling

GET A QUOTE

Description

Spindle Specifications

120MD36Y8.5
Maximum Speed: 36000 r/min

Rated Power (S1): 5.3 kW
Power (S6-60%): 8.5 kW
Rated Torque (S1): 1.4 Nm
Torque (S6-60%): 2.3 Nm
Rated Voltage: 350 V
Rated Frequency: 600 Hz
Rated Current: 11.0 A
Maximum Current: 18 A
Motor Type: 3-phase asynchronous motor
Motor Temperature Detection: Optional
Front Bearing: 2-B7006
Rear Bearing: 2-B7005
Dimensions (D): 120 mm
Dimensions (L): 255 mm
Dimensions (D1): 92 mm
Dimensions (L1): 30 mm
Dimensions (D2): 28 mm
Dimensions (L2): 12 mm
d (mm): 16 mm
Lh (mm): 27 mm
Thread Size (M): M16X1.5
Lubrication: Oil mist
Cooling Method: Water cooling
Power Connector: 5-pin connector, 1-3 pins for power

Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
